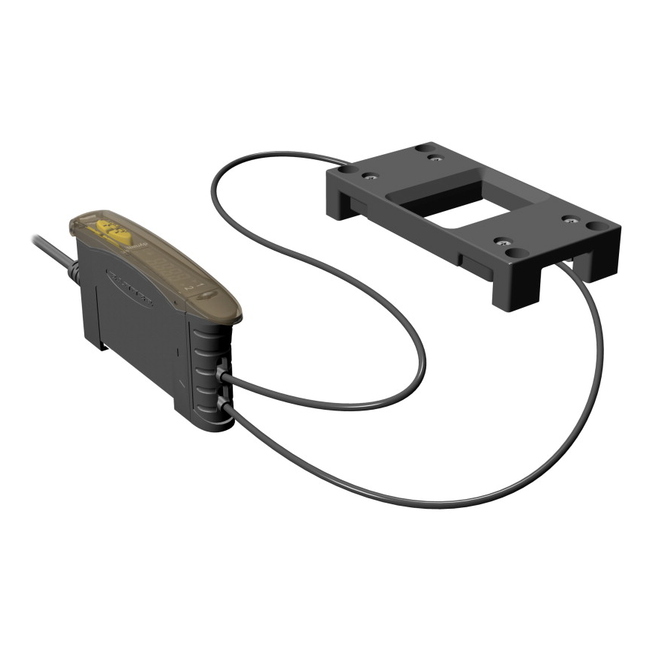

D10DNCFPQ BANNER ⍾ 10380

Lichtleiter-Verstärker: Bauform D10; D10 Expert: Small Object Counter Requires PFCVA Fiber Optic Array; Consult factory Input: 12-24 V dc; Output: NPN 6-pin Pico-style QD; Power : DC; Housing Style : DIN Rail; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Color LED - Amplifiers : Red; Fiber Type : Plastic and Glass; Connection : Integral QD; Quick Disconnect Type : M8 (Pico); Output Type (Specific) : Single Discrete; Repeatability (µs) : 50 to 100; IP Rating : IP50; NEMA Rating : NEMA 1; Max Op. Temperature (°C) : 55; Min Op. Temperature (°C) : -10; Max Op. Relative Humidity (%) : 90% @ 50°C; Special Feature: Remote Teach : Yes; Adjustments : Teach Button; Delay at Power-up (ms) : 1000; Indicator Display Type : Single Digital Display; Minimum response time (ms) : .15; Feature: Timing (Hold/Delay) : Yes; Feature: Quick Disconnect : Yes; Application: Object Counting : Yes; Housing Material : Thermoplastic

Typ

D10

Connection

Integral QD

Typische Reaktionszeit

1000 ms

Stromversorgung

12-24 V dc

Stromversorgungstyp

DC

Schutzart

IP50
