7MF1565-3BE00-5GA1 SIEMENS ⍾ 7MF15653BE005GA1

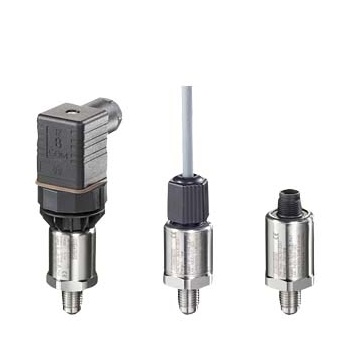

Pressure transmitter SITRANS P200 for pressure for low pressure applications. Characteristic curve deviation typ. 0.25 percent with free measuring range less than 0,5%. Material of wetted parts: stainless steel and sealing material. Material of non-wetted parts: stainless steel Measuring range for gauge: 0 to 4 bar, Overload- pressure 10 bar Output signal: 4 to 20 mA two-wire connection, power supply DC 7 to 33 V without explosion protection Electrical connection: plug to DIN EN 175301-803-A, threat for packed gland 1/2" - 14 NPT (with connector) Process connection: 1/2"-14 NPT male Sealing material between sensor and housing: Viton (FPM, Standard) Standard version

Typ

Druckübertrager SITRANS P200

Zolltarifnummer

90262020

Ursprungsland

CH

Nettogewicht

0.200 kg
