7MF0340-3GL01-5DM1-Z E22+E80 SIEMENS ⍾ 7MF03403GL015DM1ZE22E80

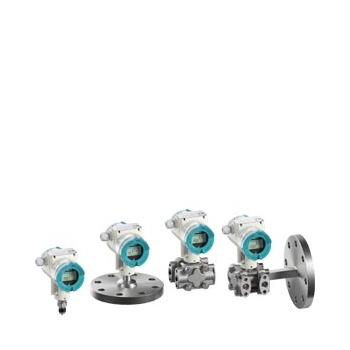

SITRANS P320 Pressure transmitter Differential pressure and flow PN160 HART (4...20 mA) Measuring cell filling: Inert liquid Maximum measuring span: 250 mbar (100.5 inH²O) Oval flange, fastening thread: 7/16-20 UNF (IEC 61518) Process connection: Stainless steel 316L/1.4404, Seal diaphragms: Stainless steel 316L/1.4404, Sensor differential pressure: Process flange: Stainless steel 316/1.4408 Die-cast aluminum housing Dual chamber device Intrinsic safety, Explosion proof 2 x 1/2-14 NPT With display (closed lid) FM (USA) Oxygen version (inert liquid max. 160 bar (2320 psi) at 100 °C (212 °F); measuring cell cleaning for grease according to cleanliness level 2, DIN 25410; transmitter package with protective film)

Typ

Druckübertrager SITRANS P320

Zolltarifnummer

90262020

Ursprungsland

FR

Nettogewicht

4.975 kg
