1SCA022294R8060 ABB ⍾ OT315KLAA3CZ

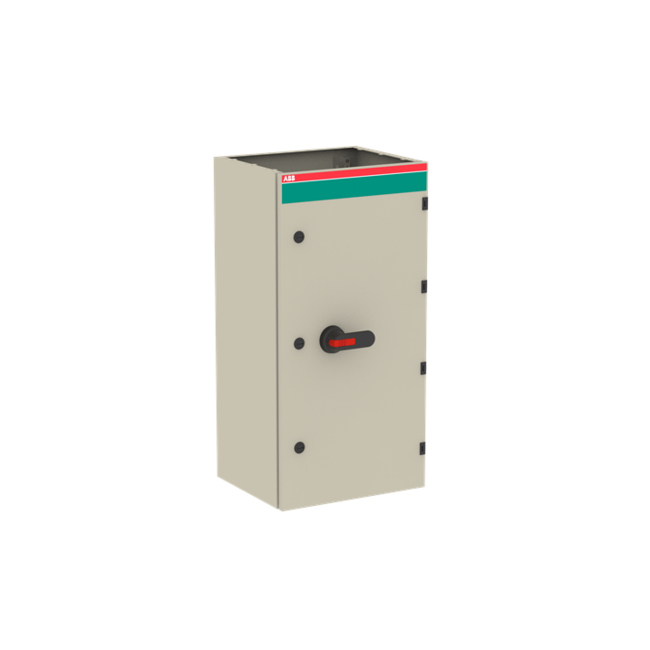

The transfer switch disconnector is using a galvanised steel enclosure, with polyester coating. It is suitable for outdoor use with respect to UV light and ingress protection. The enclosure have inbuilt gas pressure relief function to protect the user in case of an internal arc. The door is earthed via the hinges. The enclosure is prepared for single and parallell cables. Cable entry types can be blank , ring-flange or C-flange type (FL21). Cable entry plates needs to be added. There are different cable configurations, like top/bottom or bottom/bottom. The handle is padlockable for 3 padlocks, cover is interlocked, and interlock function can be bypassed for thermographing.

Typ

Manuelle Umschalter im Gehäuse

Katalogbeschreibung

OT315KLAA3CZ Enclosed change-over switch

Zolltarifnummer

85363090

Nettogewicht

15.11 kg

Produktabmessungen

(BxHxT) 400 mm x 800 mm x 330 mm

EAN

6417019083124
