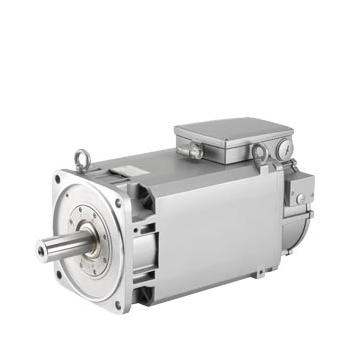

1PH8105-3JF13-2AA1 SIEMENS ⍾ 1PH81053JF132AA1

SIMOTICS M compact asynchronous motor 1500 r/min 7 kW 45 Nm 17.5 A 348 V 1750 r/min 8 kW 44 Nm 17.5 A 400 V 2000 r/min 9 kW 43 Nm 17 A 453 V 2200 r/min 9.9 kW 43 Nm 17 A 485 V forced ventilation; direction of air flow NDE--> DE; IP55 degree of protection Incremental encoder HTL 2048 S/R (encoder HTL2048S/R) With temperature sensor KTY 84-130 Design IM B35 (IM V15, (IM V35) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE A; SHAFT A.FLANGE ACCURACY GR.N TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END

Typ

SIMOTICS Phased out

Zolltarifnummer

85015230

Ursprungsland

DE

Nettogewicht

65.000
