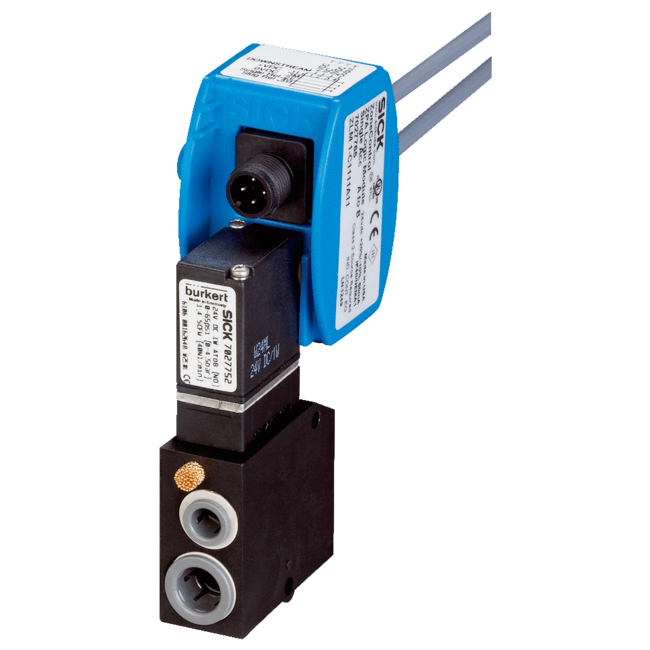

ZLM1-B1612E43 SICK ⍾ 7028843 ⍾ ZLM1B1612E43

Features: Actuator: Pneumatic, valve on board; Max. number of sensors: Approx. 30 1)Approx. 50 2); Logical principle of operation: Single accumulation; Type of Release: Single release, block (slug) release; Dimensions (W x H x D): 31 mm x 105 mm x 74 mm; Adjustment: None; Special applications: ZoneControl; Mechanics/electronics: Supply voltage: ≥ 21.6 V DC 1); Ripple: < 5 Vpp 2); Power consumption: 60 mA 3); Switching output: PNP; Signal voltage PNP HIGH/LOW: Approx. VS – 0.5 V / 0 V; Output current Imax.: ≤ 100 mA; Connection type: Cable with receptacle, M12, 4-pin, 1.1 m 4); Connection type for daisy chain: Cable with M12 male connector, 4-pin; Cable material: PVC; Circuit protection: A 5)C 6)D 7); Protection class: III; Housing material: Plastic, ABS; Enclosure rating: IP40; Ambient operating temperature: –10 °C ... +55 °C; Ambient storage temperature: –25 °C ... +75 °C; Medium for valves: Compressed air or neutral gases filtered, non-lubricated or lubricated; Design solenoid valve: 3/2-way valve 8); Mode of operation solenoid valve: Air to Brake (NO); Connection type solenoid valve: Compressed air 2 x 8 mm diameter, output line 4 mm diameter; Coil ratings: 24 V DC 1 W; Air flow rate: Approx. 20 Nl/min 9); Ventilation capacity: Approx. 130 Nl/min; Operating pressure range: 2 bar ... 8 bar 10); Pneumatic: Coil ratings: 24 V DC 1 W; Medium for valves: Compressed air or neutral gases filtered, non-lubricated or lubricated; Design solenoid valve: 3/2-way valve 1); Connection type solenoid valve: Compressed air 2 x 8 mm diameter, output line 4 mm diameter; Air flow rate: Approx. 20 Nl/min 2); Ventilation capacity: Approx. 130 Nl/min; Operating pressure range: 2 bar ... 8 bar 3); Classifications: ECl@ss 5.0: 27270902; ECl@ss 5.1.4: 27270902; ECl@ss 6.0: 27270902; ECl@ss 6.2: 27270902; ECl@ss 7.0: 27270902; ECl@ss 8.0: 27270902; ECl@ss 8.1: 27270902; ECl@ss 9.0: 27270902; ECl@ss 10.0: 27270902; ECl@ss 11.0: 27270902; ETIM 5.0: EC002717; ETIM 6.0: EC002717; ETIM 7.0: EC002717; UNSPSC 16.0901: 39121528
