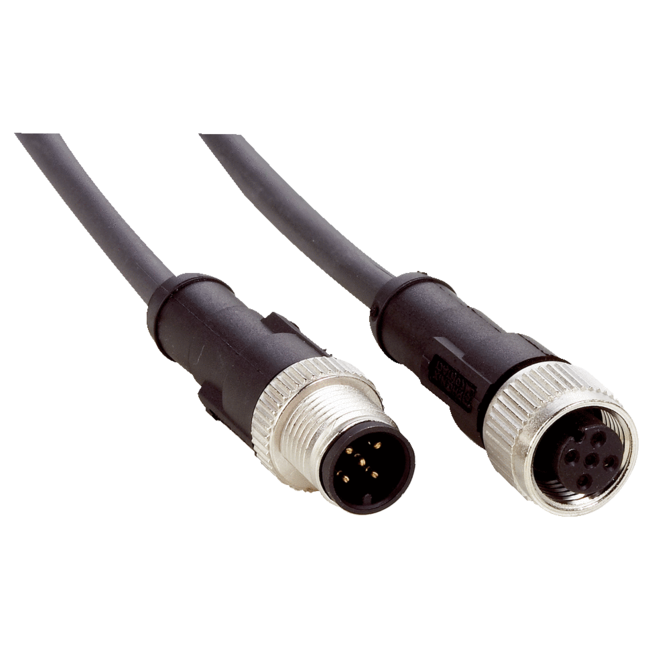

SICK YF2A85-100UB6M2A85

YF2A85-100UB6M2A85 SICK ⍾ 2096120 ⍾ YF2A85100UB6M2A85

Technical specifications: Accessory group: Plug connectors and cables; Accessory family: Connection cables; Connection type head A: Female connector, M12, 5-pin, straight, A-coded; Connection type head B: Male connector, M12, 5-pin, straight, A-coded; Locking plug connector: Quick screw connection; Connector material: TPU; Connector color: Black; Locking nut material: Zinc die-cast, nickel-plated; Tightening torque: 0.4 Nm; Cable: 10 m, 5-wire, PUR, halogen-free; Jacket material: PUR, halogen-free; Jacket color: Black; Cable diameter: 5.3 mm; Conductor cross-section: 0.34 mm²; Shielding: Shielded; Bending radiusFlexible use> 10 x cable diameterStationary position> 5 x cable diameter: Bending radius; Bending cycles: ≥ 4,000,000; Reference voltage: ≤ 60 V; Current loading: 4 A; Traversing speed: 3 m/s; Travelling distance: 10 m; Acceleration: ≤ 10 m/s²; Signal type: Digital I/Os; Application: Zones with oils and lubricantsDrag chain operation; Authorizations: UL; UL File No.: CYJV.E335179; Enclosure rating: IP65/ IP67/ IP68; Ambient operating temperatureFlexible use–25 °C ... +80 °CStationary position–40 °C ... +80 °CHead–25 °C ... +90 °C: Ambient operating temperature; Contamination rating: 3; Insulation resistance: 100 MΩ; Overvoltage category: III; Classifications: ECl@ss 5.0: 19030312; ECl@ss 5.1.4: 19030312; ECl@ss 6.0: 27060304; ECl@ss 6.2: 27060304; ECl@ss 7.0: 27060304; ECl@ss 8.0: 27060304; ECl@ss 8.1: 27060304; ECl@ss 9.0: 27060304; ECl@ss 10.0: 27060304; ECl@ss 11.0: 27060304; ETIM 5.0: EC000830; ETIM 6.0: EC000830; ETIM 7.0: EC003249; UNSPSC 16.0901: 26121604
