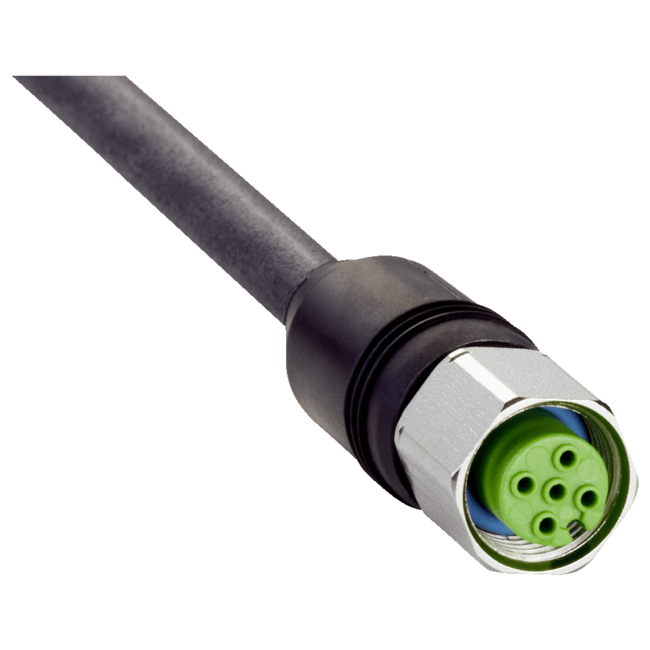

SICK YF2A64-050UE1XLEAX

YF2A64-050UE1XLEAX SICK ⍾ 6054495 ⍾ YF2A64050UE1XLEAX

Technical specifications: Accessory group: Plug connectors and cables; Accessory family: Connecting cables; Connection type head A: Female connector, M12, 4-pin, straight; Connection type head B: Flying leads; Connector color: Black; Locking nut material: Stainless steel (V4A/1.4404); Tightening torque: 0.6 Nm; Cable: 5 m, 4-wire, PUR, halogen-free; Jacket material: PUR, halogen-free; Jacket color: Black; Cable diameter: Ø 6.6 mm; Conductor cross-section: 4 x 0.75 mm²; Shielding: Shielded; Reference voltage: ≤ 60 V; Rated impulse voltage: 1.5 kV; Current loading: 4 A; Application: Zones with oils and lubricantsOutdoorDrag chain operation; Enclosure rating: IP67; Ambient operating temperatureFlexible use–5 °C ... +50 °CStationary position–40 °C ... +80 °C: Ambient operating temperature; Classifications: ECl@ss 5.0: 19030312; ECl@ss 5.1.4: 19030312; ECl@ss 6.0: 27060304; ECl@ss 6.2: 27060304; ECl@ss 7.0: 27060304; ECl@ss 8.0: 27060304; ECl@ss 8.1: 27060304; ECl@ss 9.0: 27060304; ECl@ss 10.0: 27060304; ECl@ss 11.0: 27060304; ETIM 5.0: EC000830; ETIM 6.0: EC000830; ETIM 7.0: EC003249; UNSPSC 16.0901: 26121604
