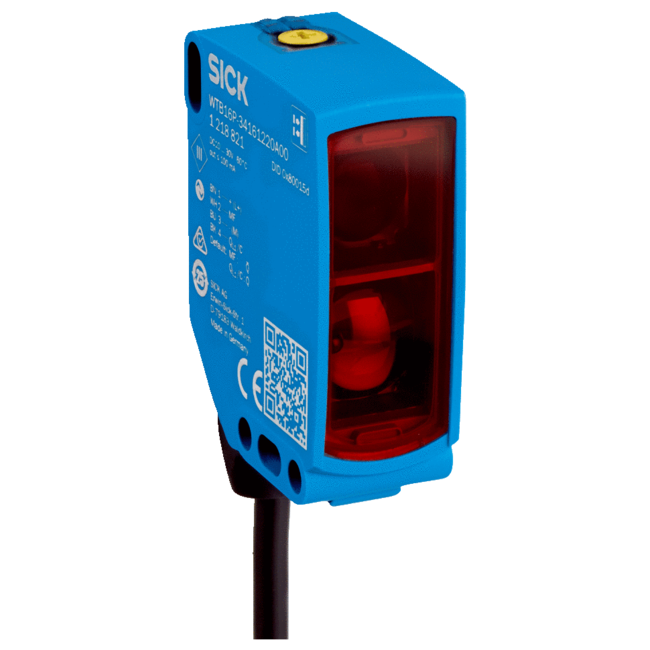

SICK WTB16I-39112120ZZZ

WTB16I-39112120ZZZ SICK ⍾ 1222674 ⍾ WTB16I39112120ZZZ

Features: Sensor/ detection principle: Photoelectric proximity sensor, Background suppression; Dimensions (W x H x D): 20 mm x 55.7 mm x 42 mm; Housing design (light emission): Rectangular; Sensing range max.: 10 mm ... 1,500 mm 1); Type of light: Infrared light; Light source: LED 2); Light spot size (distance): Ø 12 mm (800 mm); Wave length: 850 nm; AdjustmentTeach-Turn adjustmentBluePilot: for setting the sensing range: Adjustment; IndicationLED indicator blueBluePilot: sensing range indicatorLED indicator greenOperating indicatorStatic: power onLED indicator yellowStatus of received light beamStatic on: object presentStatic off: object not present: Indication; Mechanics/electronics: Supply voltage: 10 V DC ... 30 V DC 1); Ripple: ≤ 5 Vpp; Current consumption: 30 mA 2)50 mA 3); Switching output: PUSH/PULLPNPNPN; Output function: Factory setting: Pin 5 / white: NPN normally closed (dark switching), PNP normally open (light switching), Pin 4 / black: NPN normally open (light switching), PNP normally closed (dark switching); Switching mode: Dark/light switching; Signal voltage PNP HIGH/LOW: Approx. VS – 2.5 V / 0 V; Signal voltage NPN HIGH/LOW: Approx. VS / < 2.5 V; Output current Imax.: ≤ 100 mA; Response time: ≤ 500 µs 4); Switching frequency: 1,000 Hz 5); Connection type: Cable with connector Q6, 6-pin, DC-coding, 270 mm 6); Cable material: PVC; Circuit protection: A 7)B 8)C 9)D 10); Protection class: III; Weight: 70 g; Housing material: Plastic, VISTAL®; Optics material: Plastic, PMMA; Enclosure rating: IP65 (According to EN 60529); Ambient operating temperature: –40 °C ... +60 °C; Ambient storage temperature: –40 °C ... +75 °C; UL File No.: NRKH.E181493 & NRKH7.E181493; Safety-related parameters: MTTFD: 626 years; DCavg: 0%; Classifications: ECl@ss 5.0: 27270904; ECl@ss 5.1.4: 27270904; ECl@ss 6.0: 27270904; ECl@ss 6.2: 27270904; ECl@ss 7.0: 27270904; ECl@ss 8.0: 27270904; ECl@ss 8.1: 27270904; ECl@ss 9.0: 27270904; ECl@ss 10.0: 27270904; ECl@ss 11.0: 27270904; ETIM 5.0: EC002719; ETIM 6.0: EC002719; ETIM 7.0: EC002719; UNSPSC 16.0901: 39121528
