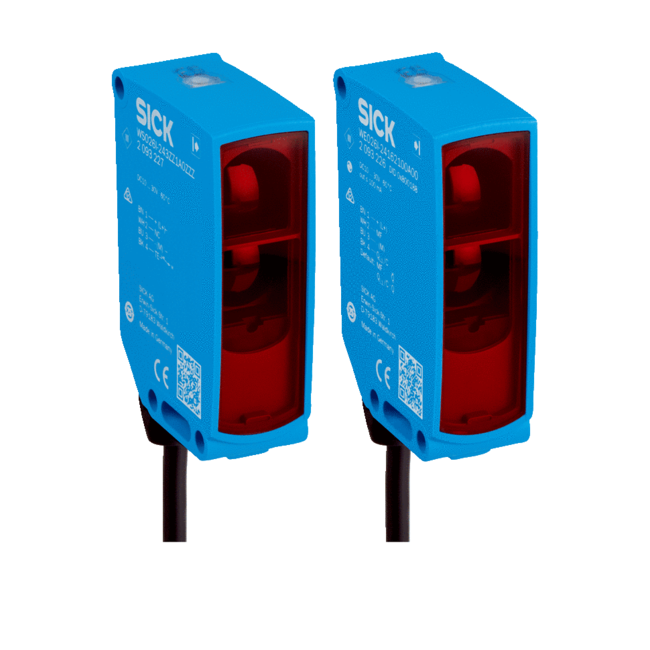

WSE26I-1H162100A00 SICK ⍾ 1088334 ⍾ WSE26I1H162100A00

Features: Sensor/ detection principle: Through-beam photoelectric sensor; Dimensions (W x H x D): 24.6 mm x 82.5 mm x 53.3 mm; Housing design (light emission): Rectangular; Sensing range max.: 0 m ... 60 m; Type of light: Infrared light; Light source: LED 1); Light spot size (distance): Ø 140 mm (15 m); Wave length: 850 nm; AdjustmentIO-LinkFor configuring the sensor parameters and Smart Task functionsWire/pinFor activating the test input: Adjustment; IndicationLED indicator blueBluePilot: Alignment aidLED indicator greenOperating indicatorStatic: power onFlashing: IO-Link modeLED indicator yellowStatus of received light beamStatic: object not presentStatic off: object presentFlashing: Below the 1.5 function reserve: Indication; Pin 2 configuration: External Input (test), Teach-in, switching signal; Mechanics/electronics: Supply voltage: 10 V DC ... 30 V DC 1); Ripple: ≤ 5 Vpp; Power consumption, sender: ≤ 30 mA 2)< 50 mA 3); Power consumption, receiver: ≤ 30 mA 2)< 50 mA 3); Switching output: PUSH/PULLPNPNPN; Output: QL1 / C: Switching output or IO-Link mode; Output function: Factory setting: Pin 2 / white (MF): NPN normally closed (light switching), PNP normally open (dark switching), Pin 4 / black (QL1 / C): NPN normally open (dark switching), PNP normally closed (light switching), IO-Link; Switching mode: Light/dark switching; Signal voltage PNP HIGH/LOW: Approx. VS – 2.5 V / 0 V; Signal voltage NPN HIGH/LOW: Approx. VS / < 2.5 V; Output current Imax.: ≤ 100 mA; Response time: ≤ 500 µs 4); Switching frequency: 1,000 Hz 5); Connection type: Cable, 2 m 6); Cable material: PVC; Circuit protection: A 7)B 8)C 9)D 10); Protection class: III; Weight: 260 g; IO-Link: ✔; Housing material: Plastic, VISTAL®; Optics material: Plastic, PMMA; Enclosure rating: IP66 (According to EN 60529)IP67 (According to EN 60529)IP69 (According to EN 60529) 11); Test input sender off: Test at 0 V; Ambient operating temperature: –40 °C ... +60 °C; Ambient storage temperature: –40 °C ... +75 °C; UL File No.: NRKH.E181493 & NRKH7.E181493; Safety-related parameters: MTTFD: 539 years; DCavg: 0%; Communication interface: Communication interface: IO-Link V1.1; Communication Interface detail: COM2 (38,4 kBaud); Cycle time: 2.3 ms; Process data length: 16 Bit; Process data structure: Bit 0 = switching signal QL1Bit 1 = switching signal QL2Bit 2 ... 15 = empty; VendorID: 26; DeviceID HEX: 0x800188; DeviceID DEC: 8389000; Smart Task: Smart Task name: Base logics; Logic function: DirectANDORWindowHysteresis; Timer function: DeactivatedOn delayOff delayON and OFF delayImpulse (one shot); Inverter: Yes; Switching frequency: SIO Direct: 1000 Hz 1)SIO Logic: 800 Hz 2)IOL: 650 Hz 3); Response time: SIO Direct: 500 µs 1)SIO Logic: 600 µs 2)IOL: 750 µs 3); Repeatability: SIO Direct: 150 µs 1)SIO Logic: 300 µs 2)IOL: 400 µs 3); Switching signal QL1: Switching output; Switching signal QL2: Switching output; Classifications: ECl@ss 5.0: 27270904; ECl@ss 5.1.4: 27270904; ECl@ss 6.0: 27270904; ECl@ss 6.2: 27270904; ECl@ss 7.0: 27270904; ECl@ss 8.0: 27270904; ECl@ss 8.1: 27270904; ECl@ss 9.0: 27270904; ECl@ss 10.0: 27270904; ECl@ss 11.0: 27270904; ETIM 5.0: EC002719; ETIM 6.0: EC002719; ETIM 7.0: EC002719; UNSPSC 16.0901: 39121528
