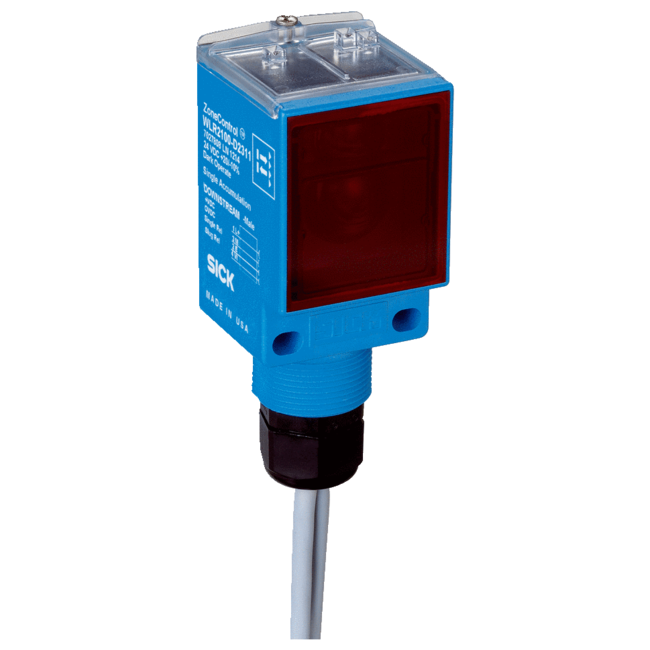

WLR2100-D1311 SICK ⍾ 7027185 ⍾ WLR2100D1311

Features: Logical principle of operation: Single accumulation; Type of Release: Single release, block (slug) release; Sensor/ detection principle: Photoelectric retro-reflective sensor; Dimensions (W x H x D): 45 mm x 73.7 mm x 48.6 mm; Sensing range max.: 0 m ... 9 m; Sensing range: 0 m ... 9 m 1); Type of light: Visible red light; Light source: LED 2); Light spot size (distance): Ø 205 mm (9 m); Adjustment: None; Special applications: ZoneControl; Mechanics/electronics: Supply voltage: 18 V DC ... 30 V DC; Ripple: < 5 Vpp 1); Power consumption: 40 mA 2); Switching output: PNP; Switching mode: Light switching; Response time: 1 ms; Switching frequency: 500 Hz; Connection type: Cable with M12 male connector, 4-pin, 300 mm; Connection type for daisy chain: Cable with receptacle, M12, 4-pin 1 m; Circuit protection: A 3)C 4)D 5); Protection class: II; Housing material: Plastic, ABS; Enclosure rating: IP67; Shock and vibration resistance: According to IEC 68; Ambient operating temperature: –25 °C ... +55 °C; Ambient storage temperature: –40 °C ... +70 °C; Connection type solenoid valve: Spade, 1 m; Pneumatic: Connection type solenoid valve: Spade, 1 m; Classifications: ECl@ss 5.0: 27270902; ECl@ss 5.1.4: 27270902; ECl@ss 6.0: 27270902; ECl@ss 6.2: 27270902; ECl@ss 7.0: 27270902; ECl@ss 8.0: 27270902; ECl@ss 8.1: 27270902; ECl@ss 9.0: 27270902; ECl@ss 10.0: 27270902; ECl@ss 11.0: 27270902; ETIM 5.0: EC002717; ETIM 6.0: EC002717; ETIM 7.0: EC002717; UNSPSC 16.0901: 39121528
