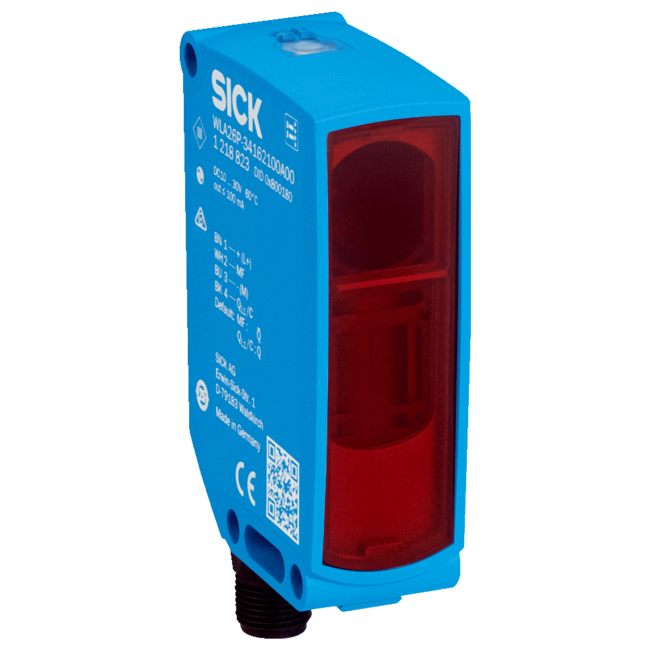

SICK WLA26P-24116100ZZZ

WLA26P-24116100ZZZ SICK ⍾ 1222792 ⍾ WLA26P24116100ZZZ

Features: Sensor/ detection principle: Photoelectric retro-reflective sensor, autocollimation; Dimensions (W x H x D): 24.6 mm x 82.5 mm x 53.3 mm; Housing design (light emission): Rectangular; Sensing range max.: 0 m ... 18 m 1); Type of light: Visible red light; Light source: PinPoint LED 2); Light spot size (distance): Ø 100 mm (10 m); Wave length: 635 nm; IndicationLED indicator blueBluePilot: Alignment aidLED indicator greenOperating indicatorStatic: power onLED indicator yellowStatus of received light beamStatic: object not presentStatic off: object presentFlashing: Below the 1.5 function reserve: Indication; Mechanics/electronics: Supply voltage: 10 V DC ... 30 V DC 1); Ripple: ≤ 5 Vpp; Current consumption: 30 mA 2)50 mA 3); Switching output: PUSH/PULLPNPNPN; Output function: Factory setting: Pin 2/white: health, Pin 4 / black: NPN normally open (dark switching), PNP normally closed (light switching); Switching mode: Light switching; Signal voltage PNP HIGH/LOW: Approx. VS – 2.5 V / 0 V; Signal voltage NPN HIGH/LOW: Approx. VS / < 2.5 V; Output current Imax.: ≤ 100 mA; Response time: ≤ 500 µs 4); Switching frequency: 1,000 Hz 5); Connection type: Male connector M12, 4-pin; Circuit protection: A 6)B 7)C 8)D 9); Protection class: III; Weight: 80 g; Polarisation filter: ✔; Housing material: Plastic, VISTAL®; Optics material: Plastic, PMMA; Enclosure rating: IP66 (According to EN 60529)IP67 (According to EN 60529)IP69 (According to EN 60529) 10); Ambient operating temperature: –40 °C ... +60 °C; Ambient storage temperature: –40 °C ... +75 °C; UL File No.: NRKH.E181493 & NRKH7.E181493; Safety-related parameters: MTTFD: 693 years; DCavg: 0%; Classifications: ECl@ss 5.0: 27270904; ECl@ss 5.1.4: 27270904; ECl@ss 6.0: 27270904; ECl@ss 6.2: 27270904; ECl@ss 7.0: 27270904; ECl@ss 8.0: 27270904; ECl@ss 8.1: 27270904; ECl@ss 9.0: 27270904; ECl@ss 10.0: 27270904; ECl@ss 11.0: 27270904; ETIM 5.0: EC002719; ETIM 6.0: EC002719; ETIM 7.0: EC002719; UNSPSC 16.0901: 39121528
