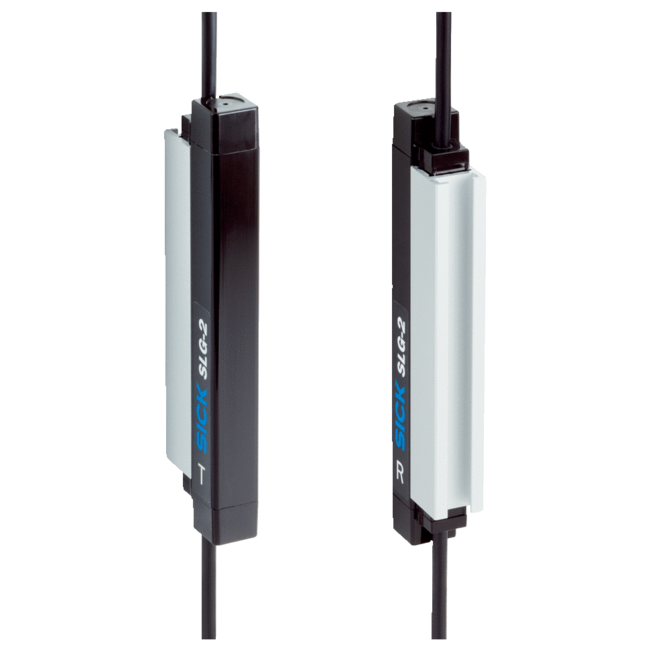

SICK SLG25S-040FBKA1K01

SLG25S-040FBKA1K01 SICK ⍾ 1222955 ⍾ SLG25S040FBKA1K01

Features: Device version: FlexChain Guest; Sensor principle: Sender/receiverLight grid system; Minimum detectable object (MDO): 30 mm; Beam separation: 25 mm; Optical light exit: Flat; Number of beams: 16; Detection height: 400 mm; Mechanics/electronics: Light source: Infrared light; Wave length: 850 nm; Supply voltage Vs: Via FlexChain (host); Output load capacitive: 100 nF; Output load inductive: 1 H; Initialization time: 1 s; Dimensions (W x H x D): 11.8 mm x 399.2 mm x 24.1 mm; Connection type: Cable with M8 male connector, 4-pin, Cable with receptacle M8, 4-pin, 0.5 m; Indication: LED; Synchronization: Via FlexChain (host); Enclosure rating: IP65, IP67 1); Circuit protection: UV connections, reverse polarity protectedInterference pulse suppressionOutputs overcurrent and short-circuit protected; Protection class: III; Weight: 252 g; Front screen: PMMA; Performance: Maximum range: 10 m; Minimum range: ≥ 0 m; Operating range: 7 m; Scanning time: 1.5 ms; Ambient data: EMC: EN 61000-6-2, EN 61000-6-4; Ambient operating temperature: –25 °C +55 °C; Ambient storage temperature: –25 °C +70 °C; Ambient light immunity: Direct: 30,000 lx 1); Vibration resistance: 10-150 Hz 0.5 mm, IEC 60068-2-6; Shock load: 10 g, 16 ms, DIN EN 60068-2-27; Classifications: ECl@ss 5.0: 27270910; ECl@ss 5.1.4: 27270910; ECl@ss 6.0: 27270910; ECl@ss 6.2: 27270910; ECl@ss 7.0: 27270910; ECl@ss 8.0: 27270910; ECl@ss 8.1: 27270910; ECl@ss 9.0: 27270910; ECl@ss 10.0: 27270910; ECl@ss 11.0: 27270910; ETIM 5.0: EC002549; ETIM 6.0: EC002549; ETIM 7.0: EC002549; UNSPSC 16.0901: 39121528
