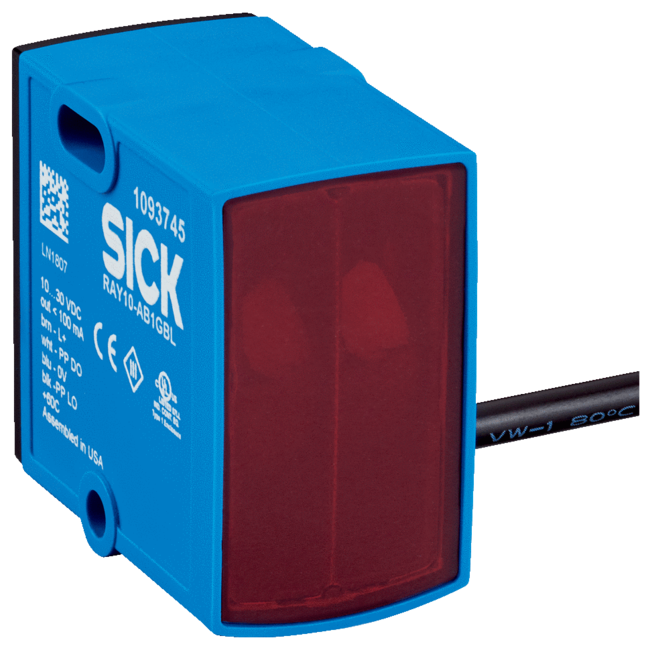

RAY10-AB1GBLA00 SICK ⍾ 1095884 ⍾ RAY10AB1GBLA00

Features: Sensor/ detection principle: Photoelectric retro-reflective sensor, Dual lensReflex Array; Dimensions (W x H x D): 21.5 mm x 36 mm x 37.7 mm; Housing design (light emission): Rectangular; Minimum object size: 5 mm, position-independent detection within the light array; Detection height: 25 mm; Sensing range max.: 0 m ... 1.5 m 1); Distance of the sensor to reflector: 0.3 m ... 1.5 m 1); Type of light: Visible red light; Light source: PinPoint LED 2); Light spot size (distance): 37 mm x 12 mm (1 m); Wave length: 635 nm; Adjustment: PotentiometerIO-Link; Pin 2 configuration: External Input (test), Teach-in, switching signal; AutoAdapt: ✔; Special applications: Detecting transparent objects, Detecting perforated objects, Detecting uneven, shiny objects, Detecting objects with position tolerances, Detecting flat objects; Mechanics/electronics: Supply voltage: 10 V DC ... 30 V DC 1); Ripple: ≤ 5 Vpp; Current consumption: 30 mA 2); Switching output: PUSH/PULLPNPNPN; Output: QL1 / C: Switching output or IO-Link mode; Output function: Factory setting: Pin 2 / white (MF): NPN normally closed (light switching), PNP normally open (dark switching), Pin 4 / black (QL1 / C): NPN normally open (dark switching), PNP normally closed (light switching), IO-Link; Switching mode: Light/dark switching; Switching mode selector: Via IO-Link; Signal voltage PNP HIGH/LOW: Approx. VS – 2.5 V / 0 V; Signal voltage NPN HIGH/LOW: Approx. VS / < 2.5 V; Output current Imax.: ≤ 100 mA; Response time: ≤ 0.5 ms 3); Switching frequency: 1,000 Hz 4); Connection type: Cable, 4-wire, 2 m 5); Cable material: PVC; Circuit protection: A 6)B 7)C 8)D 9); Protection class: III; Weight: 130 g; Housing material: Plastic, ABS; Optics material: Plastic, PMMA; Enclosure rating: IP67; Ambient operating temperature: –40 °C ... +60 °C 10); Ambient storage temperature: –40 °C ... +70 °C; UL File No.: NRKH.E189383 & NRKH7.E189383; Communication interface: Communication interface: IO-Link V1.1; Communication Interface detail: COM2 (38,4 kBaud); Cycle time: 2.3 ms; Process data length: 16 Bit; Process data structure: Bit 0 = switching signal QL1Bit 1 = switching signal QL2Bit 2 ... 15 = empty; VendorID: 26; DeviceID HEX: 0x8001DD; DeviceID DEC: 8389085; Smart Task: Smart Task name: Base logics; Logic function: DirectANDORWindowHysteresis; Timer function: DeactivatedOn delayOff delayON and OFF delayImpulse (one shot); Inverter: Yes; Switching frequency: SIO Direct: 500 Hz 1)SIO Logic: 500 Hz 2)IOL: 217 Hz 3); Response time: SIO Direct: 1 ms 1)SIO Logic: 1 ms 2)IOL: 2,3 ms 3); Repeatability: SIO Direct: 1 ms 1)SIO Logic: 1 ms 2)IOL: 2,3 ms 3); Switching signal QL1: Switching output; Switching signal QL2: Switching output; Classifications: ECl@ss 5.0: 27270902; ECl@ss 5.1.4: 27270902; ECl@ss 6.0: 27270902; ECl@ss 6.2: 27270902; ECl@ss 7.0: 27270902; ECl@ss 8.0: 27270902; ECl@ss 8.1: 27270902; ECl@ss 9.0: 27270902; ECl@ss 10.0: 27270902; ECl@ss 11.0: 27270902; ETIM 5.0: EC002717; ETIM 6.0: EC002717; ETIM 7.0: EC002717; UNSPSC 16.0901: 39121528
