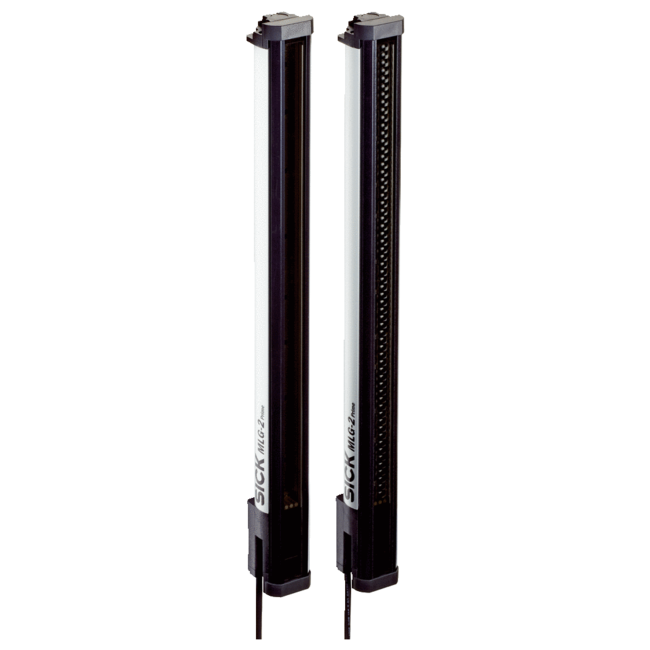

MLG10S-2990D10803 SICK ⍾ 1219363 ⍾ MLG10S2990D10803

Features: Device version: Prime - Standard functionality; Sensor principle: Sender/receiver; Minimum detectable object (MDO): 14 mm 1); Beam separation: 10 mm; Number of beams: 300; Detection height: 2,990 mm; Software features (default)Q1Presence detectionQ2 / INContamination warningQ3Auto-define height classificationinverted—Teach—key lockoff: Software features (default); Operating modeStandard✔: Operating mode; FunctionCross beam✔Beam blanking✔: Function; ApplicationsSwitching outputObject recognitionObject recognitionHeight classificationData interfaceObject recognitionObject height measurement: Applications; Included with delivery: 1 × sender1 × receiver4/6 x QuickFix brackets (6 x QuickFix brackets for monitoring heights above 2 m)1 × Quick Start Guide; Mechanics/electronics: Light source: LED, Infrared light; Wave length: 850 nm; Supply voltage Vs: DC 18 V ... 30 V 1); Power consumption sender: 70 mA 2); Power consumption receiver: 180 mA 2); Ripple: < 5 Vpp; Output current Imax.: 100 mA; Output load capacitive: 100 nF; Output load inductive: 1 H; Initialization time: < 1 s; Switching output: PUSH/PULL; Connection type: Male connector M12, 5-pin, 0.22 m; Housing material: Aluminum; Indication: LED; Enclosure rating: IP65, IP67 3); Circuit protection: UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression; Protection class: III; Weight: 6.249 kg; Front screen: PMMA; Option: None; Performance: Maximum range: 12 m 1); Minimum range: ≥ 0.5 m; Operating range: 8.5 m; Response time: 32.4 ms; Communication interface: IO-Link✔ , IO-Link V1.1Data transmission rate38,4 kbit/s (COM2)Maximum cable length20 mCycle time6 msVendorID26DeviceID HEX800067DeviceID DEC8388711: IO-Link; Process data length: 6 Byte (TYPE_2_V) 1); Digital outputQ1 ... Q3Number3: Digital output; Digital inputIn1Number1: Digital input; Ambient data: EMC: EN 60947-5-2; Ambient operating temperature: –30 °C +55 °C; Ambient storage temperature: –40 °C +70 °C; Ambient light immunity: Direct: 12,000 lx 1)Indirect: 50,000 lx 2); Vibration resistance: Sinusoidal oscillation 10-150 Hz 5 g; Shock load: Continuous shocks 10 g, 16 ms, 1000 shocksSingle shocks 15 g, 11 ms 3 per axle; UL File No.: NRKH.E181493; Classifications: ECl@ss 5.0: 27270910; ECl@ss 5.1.4: 27270910; ECl@ss 6.0: 27270910; ECl@ss 6.2: 27270910; ECl@ss 7.0: 27270910; ECl@ss 8.0: 27270910; ECl@ss 8.1: 27270910; ECl@ss 9.0: 27270910; ECl@ss 10.0: 27270910; ECl@ss 11.0: 27270910; ETIM 5.0: EC002549; ETIM 6.0: EC002549; ETIM 7.0: EC002549; UNSPSC 16.0901: 39121528
