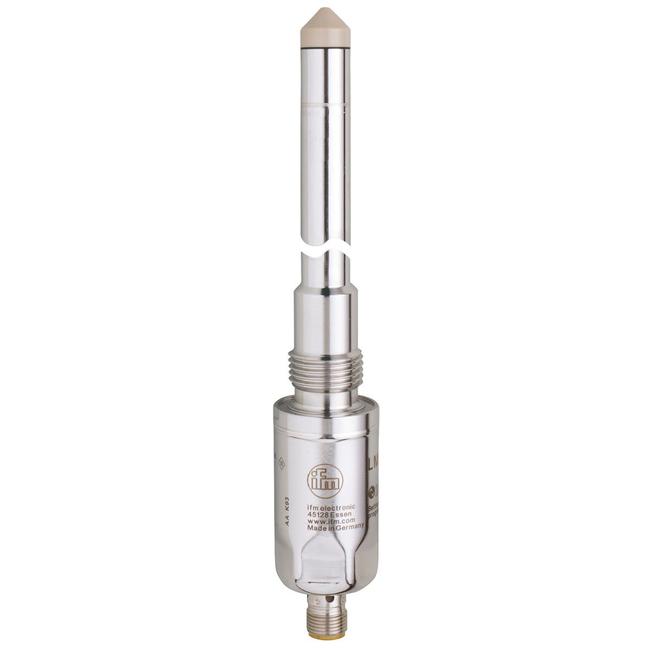

LMT105 ifm ⍾ LMECE-A12E-QSKG-2/US

Sensor for point level detection; Medium temperature [°C] : -20...100; Medium temperature short time [°C] : -20...150; (1 h); Operating voltage [V] : 18...30 DC; Protection class : III; Reverse polarity protection : yes; Measuring principle : capacitive; Total number of outputs : 2; Output signal : switching signal; IO-Link; Electrical design : PNP/NPN; Number of digital outputs : 2; Output function : normally open / normally closed; (parameterisable); Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 100; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Factory setting : hydrous media; Response time [s] : < 0.5; Communication interface : IO-Link; Transmission type : COM2 (38,4 kBaud); IO-Link revision : 1.1; SDCI standard : IEC 61131-9; Profiles : Smart Sensor: Process Data Variable; Device Identification; SIO mode : yes; Required master port type : A; Process data analogue : 1; Process data binary : 2; Min. process cycle time [ms] : 2.3; Supported DeviceIDs : Type of operation: DeviceID | Default: 370; Ambient temperature [°C] : -20...85; Note on ambient temperature : Medium temperature: < 100 °C | -20...60 °C | Medium temperature: < 150 °C; Storage temperature [°C] : -40...85; Materials : stainless steel (1.4404 / 316L); stainless steel (1.4571/316Ti ); PEEK; PEI; FKM; Materials (wetted parts) : stainless steel (1.4404 / 316L); stainless steel (1.4571/316Ti ); PEEK; surface characteristics: Ra < 0,8 / Rz 4; FKM; Process connection : threaded connection G 1/2 sealing cone

Connection

Connector: 1 x M12; Contacts: gold-plated

No. of inputs/outputs

Number of digital outputs: 2

Current consumption

< 50 mA

Voltage supply

24 V

Display

switching status: LED, yellow | operating status: LED, green

Degree of protection

IP 68; IP 69K

Weight

354.8 g

Dimensions

Ø 30 / L = 125 mm
