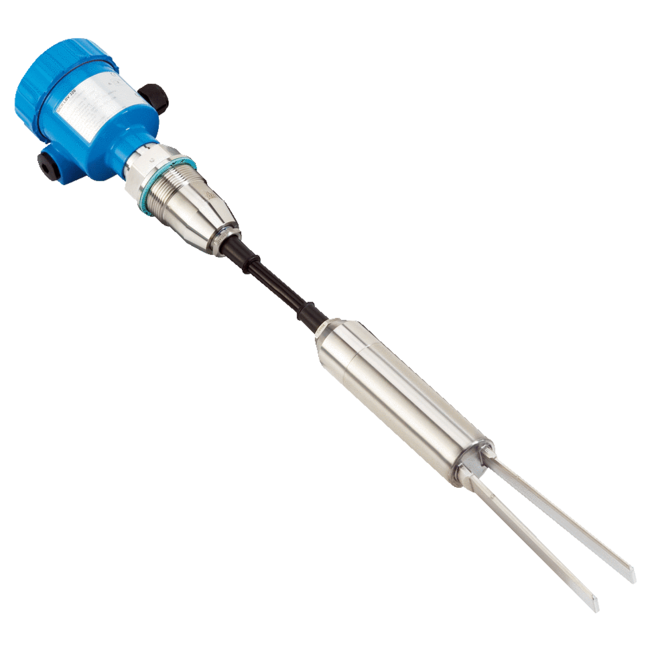

SICK LBV320-XXTGDCAMX00500

LBV320-XXTGDCAMX00500 SICK ⍾ 6063819 ⍾ LBV320XXTGDCAMX00500

Features: Medium: Bulk solids; Measurement: Switch; Probe length: 500 mm; Process pressure: –1 bar ... 6 bar; Process temperature: –20 °C ... +80 °C; Fill material density: ≥ 0.008; Particle size: < 10 mm; Tensile strength: ≤ 3,000 N; Performance: Accuracy of sensor element: ± 10 mm; Reproducibility: ≤ 5 mm; Response time: 500 ms when covered / 1,000 ms when uncovered; Electronics: Power consumption: < 4.2 mA; Initialization time: < 3 s; VDE protection class 1: ✔; Connection type: M20 x 1.5; Output signal: Non-contact switch; Supply voltage: Non-contact switch: 20 V AC/DC ... 253 V AC/DC; Hysteresis: 10 mm; Output current: < 400 mA; Inductive load: ≤ 1 H; Capacitive load: 100 nF; Enclosure rating: IP66 / IP67; Mechanics: Process connection: G 1½ A PN 25; Housing material: Aluminum; Sensor material: Stainless steel 316L, 318LN, PUR; Ambient data: Ambient operating temperature: –40 °C ... +80 °C; Ambient storage temperature: –40 °C ... +80 °C; Classifications: ECl@ss 5.0: 27273202; ECl@ss 5.1.4: 27273202; ECl@ss 6.0: 27273202; ECl@ss 6.2: 27273202; ECl@ss 7.0: 27273202; ECl@ss 8.0: 27273202; ECl@ss 8.1: 27273202; ECl@ss 9.0: 27273202; ECl@ss 10.0: 27273202; ECl@ss 11.0: 27273202; ETIM 5.0: EC002654; ETIM 6.0: EC002654; ETIM 7.0: EC002654; UNSPSC 16.0901: 41111938
