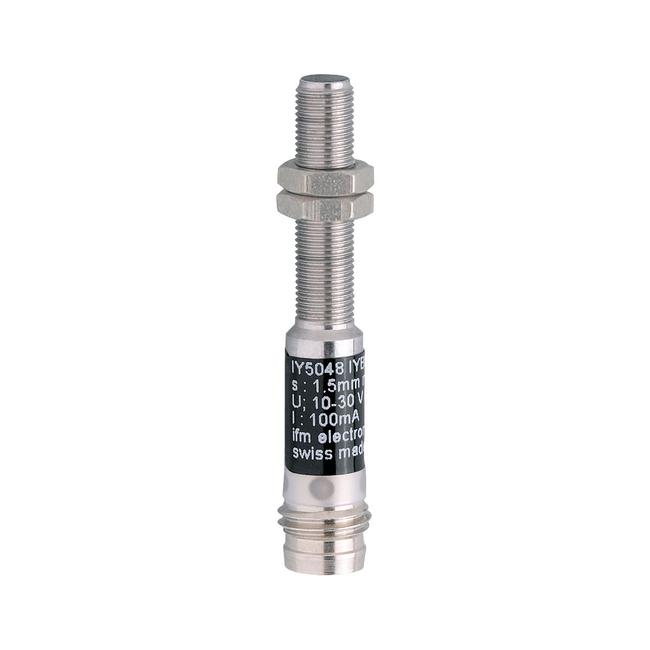

IY5048 ifm ⍾ IYB31,5-BPKG/AS-514-TPS

Inductive sensor; Operating voltage [V] : 10...30 DC; Reverse polarity protection : yes; Electrical design : PNP; Output function : normally open; Max. voltage drop switching output DC [V] : 3; Permanent current rating of switching output DC [mA] : 100; Switching frequency DC [Hz] : 1800; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Sensing range [mm] : 1.5; Real sensing range Sr [mm] : 1.5 ± 10 %; Operating distance [mm] : 0...1.2; Correction factor : steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2; Hysteresis [% of Sr] : < 15; Switch point drift [% of Sr] : -10...10; Ambient temperature [°C] : -25...70; Housing : threaded type; Mounting : non-flush mountable; Thread designation : M5 x 0.5; Materials : housing: stainless steel; sensing face: POM; Items supplied : lock nuts: 2

Connection: Connector: 1 x M8
No. of inputs/outputs: Number of analogue outputs: 1
Current consumption: 10; (24 V) mA
Voltage supply: 24 V
Display: switching status: 4 x 90° LED, red
Degree of protection: IP 67
Weight: 15.8 g
Dimensions: M5 x 0.5 / L = 41 mm
