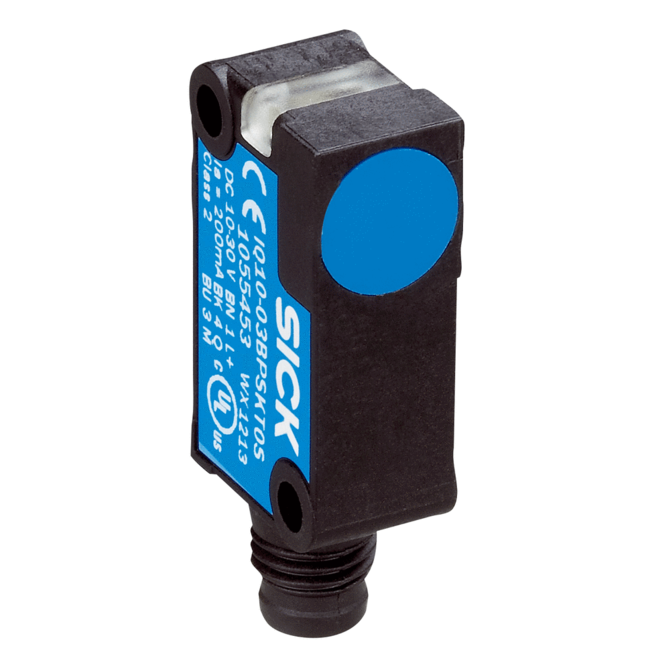

SICK IQ10-02BPSKT0S

IQ10-02BPSKT0S SICK ⍾ 1096026 ⍾ IQ1002BPSKT0S

Features: Housing: Rectangular; Dimensions (W x H x D): 10 mm x 28 mm x 16 mm; Sensing range Sn: 2 mm; Safe sensing range Sa: 1.62 mm; Installation type: Flush; Switching frequency: 2,000 Hz; Connection type: Connector M8, 3-pin; Switching output: PNP; Output function: NO; Electrical wiring: DC 3-wire; Enclosure rating: IP68 1); Mechanics/electronics: Supply voltage: 10 V DC ... 30 V DC; Ripple: ≤ 10 % 1); Voltage drop: ≤ 2 V 2); Current consumption: 10 mA 3); Time delay before availability: ≤ 100 ms; Hysteresis: 5 % ... 15 %; Reproducibility: ≤ 2 % 4); Temperature drift (of Sr): ± 10 %; EMC: According to EN 60947-5-2; Continuous current Ia: ≤ 200 mA; Short-circuit protection: ✔; Reverse polarity protection: ✔; Power-up pulse protection: ✔; Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm; Ambient operating temperature: –25 °C ... +75 °C; Housing material: Plastic, VISTAL®; Sensing face material: Plastic, VISTAL®; Tightening torque, max.: ≤ 1 Nm; Reduction factors: Note: The values are reference values which may vary; Stainless steel (V2A, 304): 0.7; Aluminum (Al): 0.4; Copper (Cu): 0.3; Brass (Br): 0.5; Installation note: Remark: Associated graphic see "Installation"; A: 0 mm; B: 10 mm; C: 10.3 mm; D: 9 mm; E: 0 mm; F: 24 mm; G: 0 mm; Classifications: ECl@ss 5.0: 27270101; ECl@ss 5.1.4: 27270101; ECl@ss 6.0: 27270101; ECl@ss 6.2: 27270101; ECl@ss 7.0: 27270101; ECl@ss 8.0: 27270101; ECl@ss 8.1: 27270101; ECl@ss 9.0: 27270101; ECl@ss 10.0: 27270101; ECl@ss 11.0: 27270101; ETIM 5.0: EC002714; ETIM 6.0: EC002714; ETIM 7.0: EC002714; UNSPSC 16.0901: 39122230
