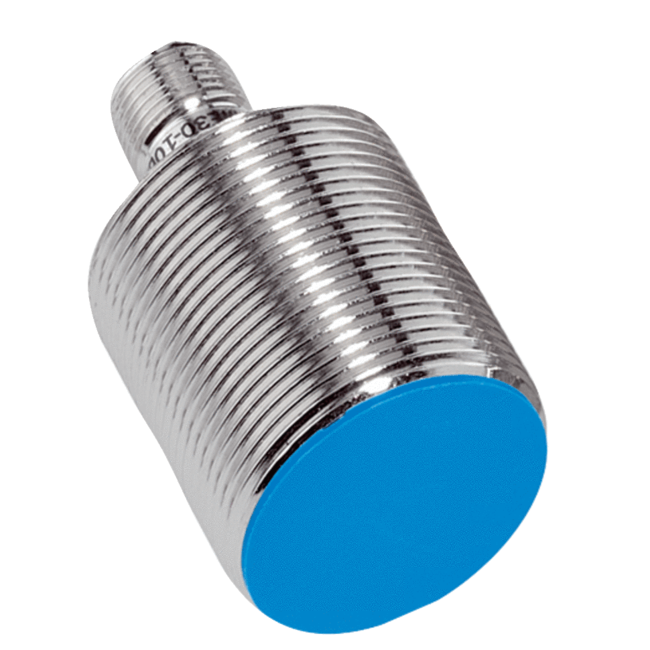

IME30-15BPSZC0KS34 SICK1098582IME3015BPSZC0KS34

Features: Housing: Cylindrical thread design; Housing: Short-body; Thread size: M30 x 1.5; Diameter: Ø 30 mm; Sensing range Sn: 15 mm; Safe sensing range Sa: 12.15 mm; Installation type: Flush; Switching frequency: 500 Hz; Connection type: Male connector M12, 4-pin; Switching output: PNP; Output function: NO; Electrical wiring: DC 3-wire; Enclosure rating: IP67 1); Special characteristic: Including locking nuts; Mechanics/electronics: Supply voltage: 10 V DC ... 30 V DC; Ripple: ≤ 10 %; Voltage drop: ≤ 2 V 1); Current consumption: 10 mA 2); Time delay before availability: ≤ 125 ms; Hysteresis: 3 % ... 15 %; Reproducibility: ≤ 2 % 3) 4); Temperature drift (of Sr): ± 10 %; EMC: According to EN 60947-5-2; Continuous current Ia: ≤ 200 mA; Short-circuit protection: ✔; Reverse polarity protection: ✔; Power-up pulse protection: ✔; Shock and vibration resistance: 30 g, 11 ms/10 Hz ... 55 Hz, 1 mm; Ambient operating temperature: –25 °C ... +75 °C; Housing material: Brass, nickel-plated; Sensing face material: Plastic, PA 66; Housing length: 52 mm; Thread length: 35 mm; Tightening torque, max.: ≤ 100 Nm; Items supplied: Mounting nut, V2A stainless steel, with locking teeth (2x); UL File No.: NRKH.E181493; Reduction factors: Note: The values are reference values which may vary; St37 steel (Fe): 1; Stainless steel (V2A, 304): Approx. 0.8; Aluminum (Al): Approx. 0.45; Copper (Cu): Approx. 0.4; Brass (Br): Approx. 0.4; Installation note: Remark: Associated graphic see "Installation"; B: 60 mm; C: 30 mm; D: 45 mm; F: 120 mm; Classifications: ECl@ss 5.0: 27270101; ECl@ss 5.1.4: 27270101; ECl@ss 6.0: 27270101; ECl@ss 6.2: 27270101; ECl@ss 7.0: 27270101; ECl@ss 8.0: 27270101; ECl@ss 8.1: 27270101; ECl@ss 9.0: 27270101; ECl@ss 10.0: 27270101; ECl@ss 11.0: 27270101; ETIM 5.0: EC002714; ETIM 6.0: EC002714; ETIM 7.0: EC002714; UNSPSC 16.0901: 39122230
