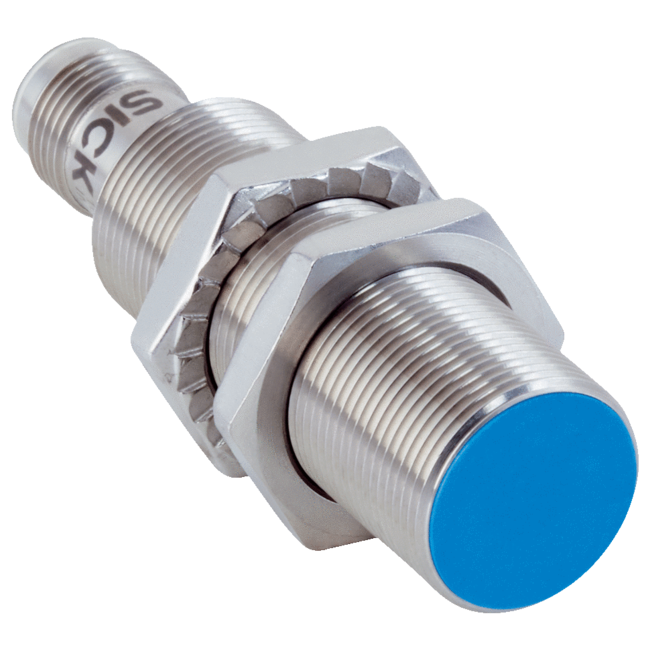

IMC18-08BPPVC0SA71 SICK ⍾ 1079294 ⍾ IMC1808BPPVC0SA71

Features: Housing: Cylindrical thread design; Thread size: M18 x 1; Diameter: Ø 18 mm; Sensing range Sn: 0 mm ... 8 mm 1); Safe sensing range Sa: 6.48 mm; Number of switching points: Up to 4 adjustable switching points or windows; Switching modes: Single point, Window mode, Two point mode, Visual adjustment indicator; Switching frequency Qint.1 / Qint.2 on Pin2: 250 Hz; Installation type: Quasi-flush 2); Connection type: Male connector M12, 4-pin 3); Switching output: PNP; Output Q/C: Switching output or IO-Link mode; Output MFC: Switching output or input; Output function: NC / NO; Output characteristic: Programmable; Electrical wiring: DC 4-wire; Enclosure rating: IP68 4)IP69K 5); Special features: Smart Task, Resistant against coolant lubricants, IO-Link; Special applications: Zones with coolants and lubricants, Difficult application conditions; Special characteristic: Resistant against coolant lubricants; Diagnosis: Chip temperature; Pin 2 configuration: External input, Teach-in, switching signal; Mechanics/electronics: Supply voltage: 10 V DC ... 30 V DC 1); Ripple: ≤ 10 %; Voltage drop: ≤ 2 V 2); Current consumption: 35 mA 3); Hysteresis: Programmable 4); Reproducibility: ≤ 5 % 5); Temperature drift (of Sr): ± 10 %; EMC: According to EN 60947-5-2; Continuous current Ia: ≤ 200 mA 6); Short-circuit protection: ✔; Reverse polarity protection: ✔; Power-up pulse protection: ✔; Shock and vibration resistance: 100 g / 2 ms / 500 cycles; 150 g / 1 Mio cycles; 10 Hz ... 55 Hz / 1 mm; 55 Hz ... 500 Hz / 60 g; Ambient operating temperature: –40 °C ... +75 °C; Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303; Sensing face material: Plastic, LCP; Housing length: 65 mm; Thread length: 47 mm; Tightening torque, max.: Typ. 90 Nm 7); Items supplied: Mounting nut, V2A stainless steel, with locking teeth (2x); UL File No.: E181493; Teach-in accuracy: +/- 3% of Sr; Resolution, typical (range): 25 μm (0 mm ... 5 mm)150 μm (5 mm ... 8 mm); Resolution, maximum (area): 50 μm (0 mm ... 5 mm)300 μm (5 mm ... 8 mm); Safety-related parameters: MTTFD: 860 years; DCavg: 0%; Communication interface: Communication interface: IO-Link V1.1; Communication Interface detail: COM2 (38,4 kBaud); Cycle time: 5 ms; Process data length: 32 Bit; Process data structure: Bit 0 = switching signal QL1Bit 1 = switching signal QL2Bit 2 = switching signal QInt3Bit 3 = switching signal QInt4Bit 18 ... 31 = counting value; Factory setting: Switching Point 1: reference value 1Output: normally openPin 2 configuration: input; Reference values: Note: Reference value in Digits for switching point in mm stored in the sensor; Reference value 1: 7 mm; Reference value 2: 5 mm; Reference value 3: 3 mm; Reference value 4: 1 mm; Reduction factors: Stainless steel (V2A, 304): Approx. 0.6; Aluminum (Al): Approx. 0.3; Copper (Cu): Approx. 0.2; Brass (Br): Approx. 0.2; Installation note: Remark: Associated graphic see "Installation"; A: 9 mm; B: 18 mm; C: 18 mm; D: 24 mm; E: 2 mm; F: 64 mm; Smart Task: Smart Task name: Counter + debouncing; Logic function: WindowHysteresisDirect; Timer function: DeactivatedOn delayOff delayON and OFF delayImpulse (one shot); Inverter: Adjustable; Maximum counting frequency: SIO Logic: 250 Hz 1)IOL: 250 Hz 2); Counter reset: SIO Logic: 500 µs 1)IOL: --- 2); Min. Time between two process events (switches): SIO Logic: 2 ms 1)IOL: 2 ms 2); Debounce time max.: SIO Logic: 30 s 1)IOL: 30 s 2); Switching signal QL1: Output type (dependant on the adjusted threshold); Switching signal QL2: Output type (dependant on the adjusted threshold); Measuring value: Counting value; Classifications: ECl@ss 5.0: 27270101; ECl@ss 5.1.4: 27270101; ECl@ss 6.0: 27270101; ECl@ss 6.2: 27270101; ECl@ss 7.0: 27270101; ECl@ss 8.0: 27270101; ECl@ss 8.1: 27270101; ECl@ss 9.0: 27270101; ECl@ss 10.0: 27270101; ECl@ss 11.0: 27270101; ETIM 5.0: EC002714; ETIM 6.0: EC002714; ETIM 7.0: EC002714; UNSPSC 16.0901: 39122230
