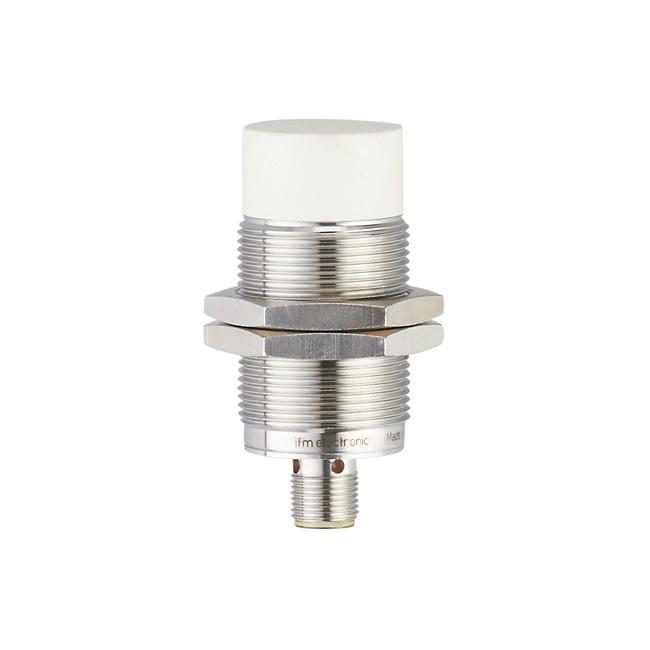

IIM201 ifm ⍾ IIKC022-ASKG/M/US-104
Inductive sensor; Operating voltage [V] : 10...36 DC; Protection class : II; Reverse polarity protection : yes; Electrical design : PNP/NPN; Output function : normally open; Max. voltage drop switching output DC [V] : 2.5; Minimum load current [mA] : 2; (only in 2-wire operation); Max. leakage current [mA] : 0.5; (only in 2-wire operation); Permanent current rating of switching output DC [mA] : 100; Switching frequency DC [Hz] : 100; Short-circuit protection : yes; Overload protection : yes; Sensing range [mm] : 22; Real sensing range Sr [mm] : 22 ± 10 %; Operating distance [mm] : 0...17.82; Increased sensing range : yes; Correction factor : steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.45 / copper: 0.4; Hysteresis [% of Sr] : 1...20; Switch point drift [% of Sr] : -10...10; Ambient temperature [°C] : -40...85; Housing : threaded type; Mounting : non-flush mountable; Thread designation : M30 x 1.5; Materials : threaded sleeve: stainless steel; sensing face: LCP natural; LED window: PEI; lock nuts: brass; Items supplied : lock nuts: 2; Connector: 1 x M12; Contacts: gold-plated
- Connection
- Connector: 1 x M12; Contacts: gold-plated
- No. of inputs/outputs
- Number of analogue outputs: 1
- Current consumption
- < 10; (only in 3-wire operation) mA
- Voltage supply
- 24 V
- Display
- switching status: 4 x 90° LED, yellow
- Degree of protection
- IP 67; IP 69K
- Weight
- 118.3 g
- Dimensions
- M30 x 1.5 / L = 70 mm
