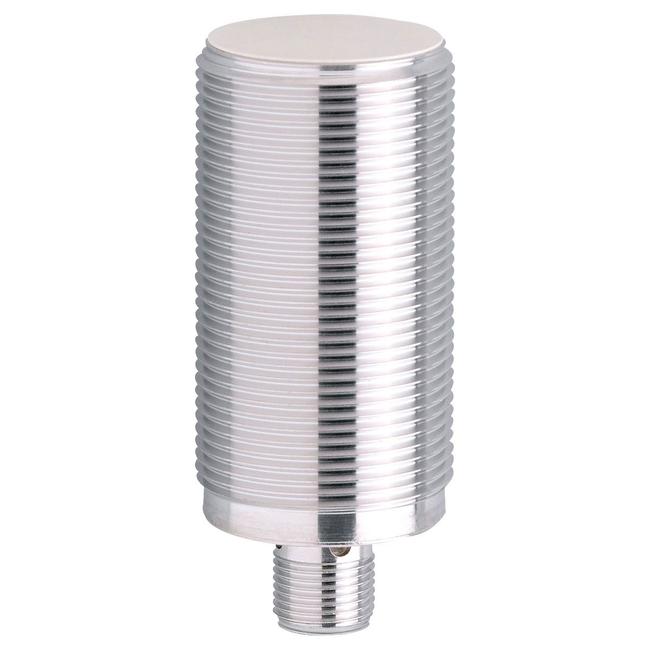

IIC208 ifm ⍾ IIK2015BFRKG/M/2LED/US-104-IRF
Inductive sensor; Operating voltage [V] : 10...30 DC; Protection class : II; Reverse polarity protection : yes; Electrical design : PNP/NPN; Output function : normally open / normally closed; (selectable); Max. voltage drop switching output DC [V] : 4.6; Minimum load current [mA] : 4; Max. leakage current [mA] : 1; Permanent current rating of switching output DC [mA] : 100; Switching frequency DC [Hz] : 100; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Sensing range [mm] : 15; Operating distance [mm] : 0...12.1; Increased sensing range : yes; Correction factor : steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3; Hysteresis [% of Sr] : 1...20; Switch point drift [% of Sr] : -10...10; Ambient temperature [°C] : -25...70; Housing : threaded type; Mounting : flush mountable; Thread designation : M30 x 1.5; Materials : housing: brass white bronze coated; sensing face: LCP uncoloured; Optical setting aid : yes; Items supplied : lock nuts: 2; Connector: 1 x M12; Contacts: gold-plated
- Connection
- Connector: 1 x M12; Contacts: gold-plated
- No. of inputs/outputs
- Number of analogue outputs: 1
- Current consumption
- 10; (24 V) mA
- Voltage supply
- 24 V
- Display
- switching status: 4 x 90° LED, yellow | setting aid: 1 x LED, red
- Degree of protection
- IP 68; ("Coolant")
- Weight
- 134.5 g
- Dimensions
- M30 x 1.5 / L = 70 mm
