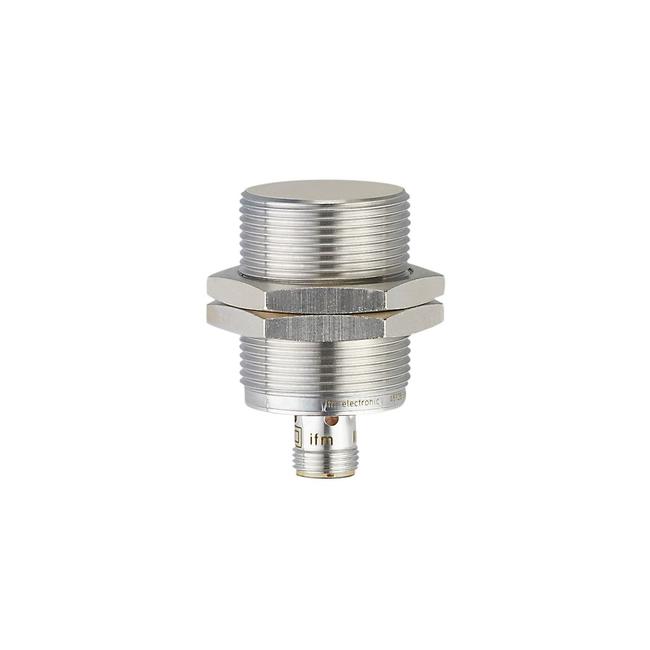

IIC200 ifmIIB3015BBPKG/US-104

Inductive sensor; Operating voltage [V] : 10...30 DC; Protection class : II; Reverse polarity protection : yes; Electrical design : PNP; Output function : normally open; Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 100; Switching frequency DC [Hz] : 100; Short-circuit protection : yes; Overload protection : yes; Sensing range [mm] : 15; Real sensing range Sr [mm] : 15 ± 10 %; Operating distance [mm] : 0...12.15; Increased sensing range : yes; Correction factor : steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3; Hysteresis [% of Sr] : 3...15; Switch point drift [% of Sr] : -10...10; Ambient temperature [°C] : -25...70; Housing : threaded type; Mounting : flush mountable; Thread designation : M30 x 1.5; Materials : housing: brass white bronze coated; sensing face: LCP natural; LED window: PEI; lock nuts: white bronze coated; Items supplied : lock nuts: 2

Connection
Connector: 1 x M12; Contacts: gold-plated
No. of inputs/outputs
Number of analogue outputs: 1
Current consumption
10 mA
Voltage supply
24 V
Display
switching status: 4 x 90° LED, yellow
Degree of protection
IP 67; ("Coolant")
Weight
105.6 g
Dimensions
M30 x 1.5 / L = 50 mm
