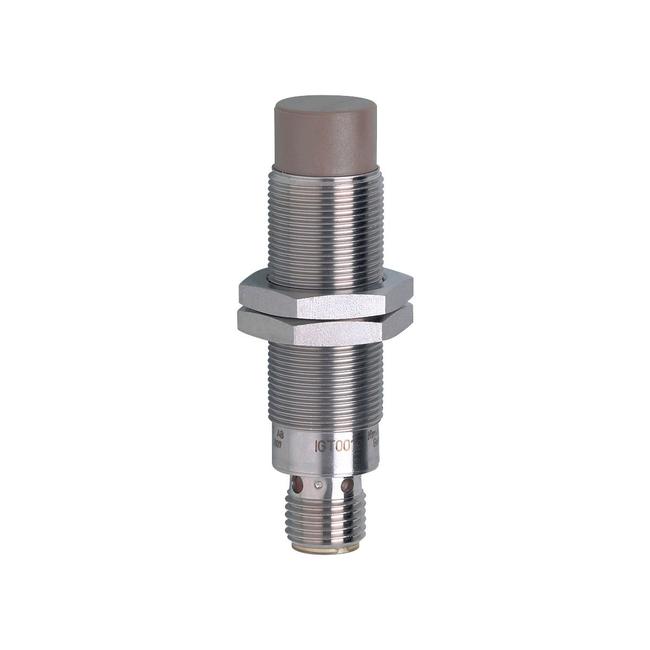

LS-104AK

Inductive sensor; Operating voltage [V] : 20...140 AC/DC; Protection class : II; Reverse polarity protection : yes; Max. power-on delay time [ms] : 1000; Output function : normally open; Max. voltage drop switching output DC [V] : 5.5; Max. voltage drop switching output AC [V] : 5.5; Minimum load current [mA] : 5; Max. leakage current [mA] : 1; Permanent current rating of switching output AC [mA] : 80; (200 (...80 °C)); Permanent current rating of switching output DC [mA] : 80; (200 (...80 °C)); Short-time current rating of switching output [mA] : 1200; (20 ms / 0,5 Hz); Switching frequency AC [Hz] : 25; Switching frequency DC [Hz] : 300; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Sensing range [mm] : 12; Real sensing range Sr [mm] : 12 ± 10 %; Operating distance [mm] : 0...9.7; Correction factor : steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3; Hysteresis [% of Sr] : 1...20; Switch point drift [% of Sr] : -10...10; Ambient temperature [°C] : 0...100; Housing : threaded type; Mounting : non-flush mountable; Thread designation : M18 x 1; Materials : threaded sleeve: stainless steel (1.4404 / 316L); sensing face: PEEK; lock nuts: stainless steel; Items supplied : lock nuts: 2; Connector: 1 x 1/2"

Connection: Cable: 5 m, PUR; 2 x 0.34 mm²
No. of inputs/outputs: Number of analogue outputs: 1
Current consumption: < 10 mA
Voltage supply: 24 V
Display: switching status: 4 x 90° LED, yellow
Degree of protection: IP 68; IP 69K; ("COP")
Weight: 59.3 g
Dimensions: M18 x 1 / L = 70 mm
