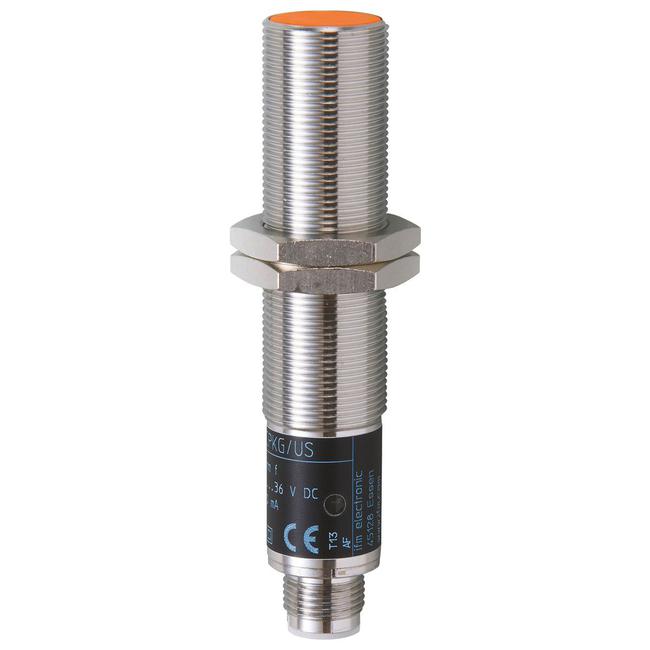

IG6062 ifm ⍾ IGA2005-FRKG/US-100-IRF

Inductive sensor; Operating voltage [V] : 10...36 DC; Protection class : III; Reverse polarity protection : yes; Electrical design : PNP/NPN; Output function : normally open / normally closed; (selectable); Max. voltage drop switching output DC [V] : 5.5; Minimum load current [mA] : 4; Max. leakage current [mA] : 0.8; Permanent current rating of switching output DC [mA] : 250; Switching frequency DC [Hz] : 100; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Sensing range [mm] : 5; Real sensing range Sr [mm] : 5 ± 10 %; Operating distance [mm] : 0...4.05; Correction factor : steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.4 / copper: 0.3; Hysteresis [% of Sr] : 3...15; Switch point drift [% of Sr] : -10...10; Ambient temperature [°C] : -25...80; Increased immunity : yes; Housing : threaded type; Mounting : flush mountable; Thread designation : M18 x 1; Materials : brass white bronze coated; PC; Items supplied : lock nuts: 2; Connector: 1 x M12

Connection: Connector: 1 x M12; Contacts: gold-plated
No. of inputs/outputs: Number of analogue outputs: 1
Current consumption: 15; (24 V) mA
Voltage supply: 24 V
Display: switching status: 1 x LED, yellow
Degree of protection: IP 67
Weight: 74.6 g
Dimensions: M18 x 1 / L = 89 mm
