US-104-DPS

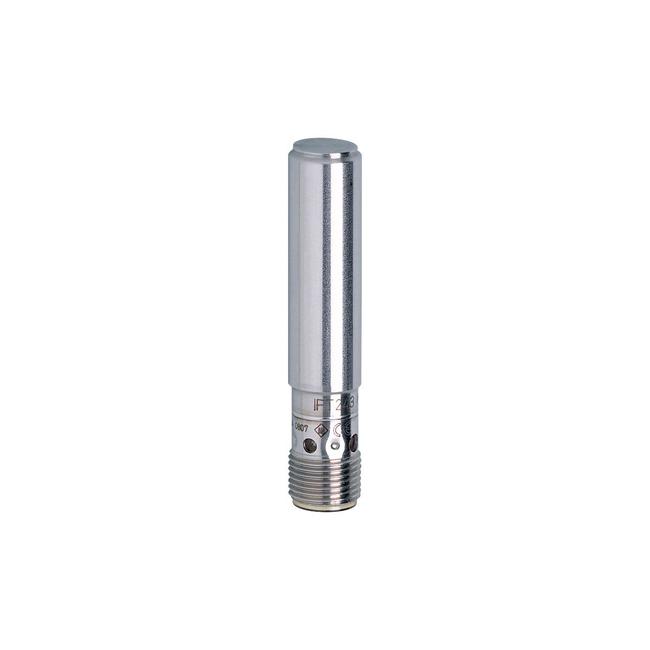

Inductive full-metal sensor; Operating voltage [V] : 10...30 DC; Protection class : III; Reverse polarity protection : yes; Electrical design : PNP; Output function : normally open; Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 100; Switching frequency DC [Hz] : 100; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Sensing range [mm] : 3; Operating distance [mm] : 0...2.4; Increased sensing range : yes; Correction factor : steel: 1 / stainless steel: 0.6 / brass: 0.7 / aluminium: 0.6 / copper: 0.3; Hysteresis [% of Sr] : 1...20; Ambient temperature [°C] : 0...100; Housing : cylindrical; Mounting : flush mountable; Materials : housing: stainless steel (1.4404 / 316L); sensing face: stainless steel (1.4404 / 316L); LED window: PEI; lock nuts: stainless steel (1.4404 / 316L); Tightening torque [Nm] : 15; Full-metal housing : yes; Connector: 1 x M12; Contacts: gold-plated

Connection: Connector: 1 x M8; Locking: snap-fit
No. of inputs/outputs: Number of analogue outputs: 1
Current consumption: < 20 mA
Voltage supply: 24 V
Display: switching status: 4 x 90° LED, yellow
Degree of protection: IP 68; IP 69K
Weight: 19.645 g
Dimensions: Ø 12 / L = 60 mm
