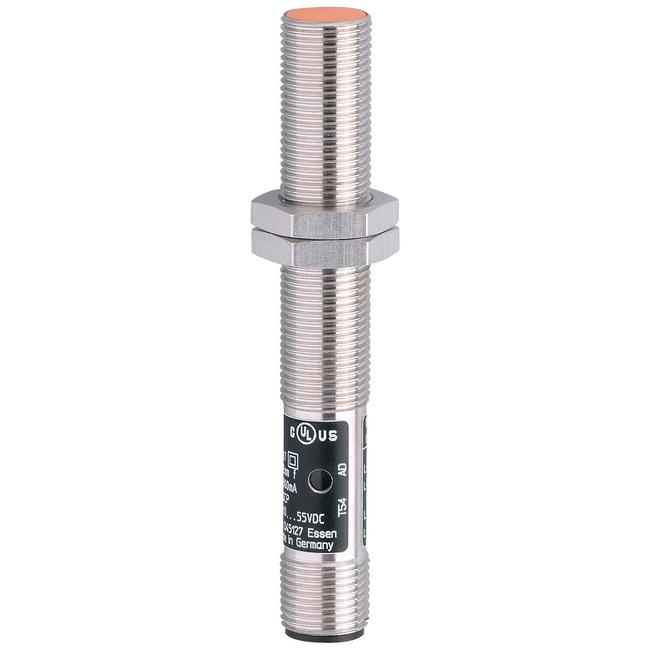

US-100-IRF RT

Inductive sensor; Operating voltage [V] : 10...55 DC; Protection class : III; Reverse polarity protection : yes; Electrical design : PNP/NPN; Output function : normally open / normally closed; (selectable); Max. voltage drop switching output DC [V] : 4.6; Minimum load current [mA] : 4; Max. leakage current [mA] : 0.5; Permanent current rating of switching output DC [mA] : 400; Switching frequency DC [Hz] : 1100; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Sensing range [mm] : 2; Real sensing range Sr [mm] : 2 ± 10 %; Operating distance [mm] : 0...1.6; Correction factor : steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.3 / copper: 0.2; Hysteresis [% of Sr] : 1...15; Switch point drift [% of Sr] : -10...10; Ambient temperature [°C] : -25...80; Housing : threaded type; Mounting : flush mountable; Thread designation : M12 x 1; Materials : stainless steel (1.4571/316Ti ); sensing face: PBT; Items supplied : lock nuts: 2; Connector: 1 x M12; Contacts: gold-plated

Connection: Connector: 1 x M12
No. of inputs/outputs: Number of analogue outputs: 1
Current consumption: 15; (24 V) mA
Voltage supply: 24 V
Display: switching status: 1 x LED, red
Degree of protection: IP 67
Weight: 34.7 g
Dimensions: M12 x 1 / L = 83 mm
