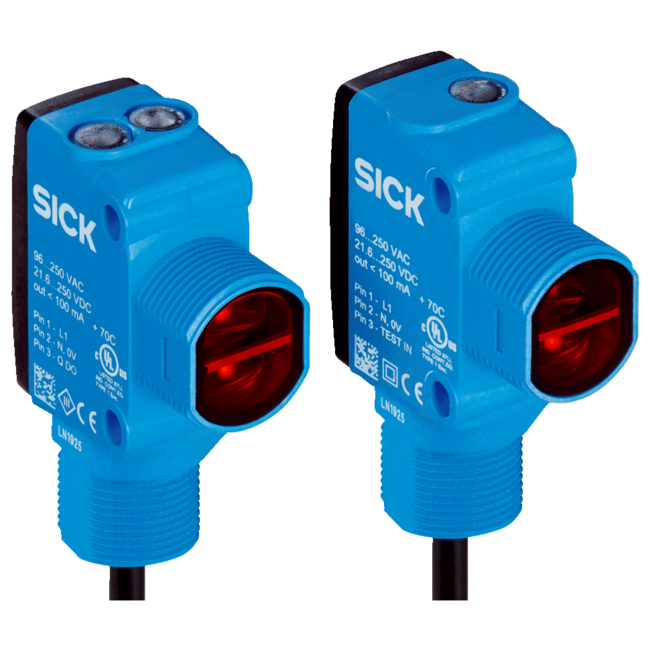

HSE18B-M1G1AA SICK ⍾ 1101665 ⍾ HSE18BM1G1AA
Features: Sensor/ detection principle: Through-beam photoelectric sensor; Dimensions (W x H x D): 16.2 mm x 50.1 mm x 34.4 mm; Housing design (light emission): Hybrid; Thread diameter (housing): M18; Mounting system type: M18, nose / M18, base / side (24.1 … 25.4 mm); Housing color: Blue; Sensing range max.: 0 m ... 20 m; Sensing range: 0 m ... 15 m; Type of light: Infrared light; Light source: LED 1); Light spot size (distance): 1,400 mm (10 m); Wave length: 850 nm; AdjustmentPotentiometer, rightNonePotentiometer, leftNone: Adjustment; Special features: -; Mechanics/electronics: Supply voltage: 21.6 V DC ... 250 V DC, 96 V AC ... 250 V AC 1); Current consumption: 10 mA 2); Switching output: MOSFET; Switching mode: Dark switching; Switching output detailSwitching output Q1MOSFET, Dark switching: Switching output detail; Output current Imax.: ≤ 100 mA; Response time: ≤ 0.5 ms 3); Switching frequency: 1,000 Hz 4); Connection type: Cable open end, 2,000 mm; Cable material: PVC; Conductor cross-section: 0.2 mm²; Circuit protection: A 5)B 6)D 7); Protection class: II 8); Weight: 18 g; Housing material: Plastic, VISTAL®; Optics material: Plastic, PMMA; Enclosure rating: IP67IP69K; Items supplied: Mounting nut (1x), M18, plastic, black, flat; EMC: EN 60947-5-2 (The sensor complies with the Radio Safety Requirements (EMC) for the industrial sector (Radio Safety Class A). It may cause radio interference if used in a residential area.); Ambient operating temperature: –40 °C ... +70 °C; Ambient storage temperature: –40 °C ... +75 °C; UL File No.: E189383; Classifications: ECl@ss 5.0: 27270901; ECl@ss 5.1.4: 27270901; ECl@ss 6.0: 27270901; ECl@ss 6.2: 27270901; ECl@ss 7.0: 27270901; ECl@ss 8.0: 27270901; ECl@ss 8.1: 27270901; ECl@ss 9.0: 27270901; ECl@ss 10.0: 27270901; ECl@ss 11.0: 27270901; ETIM 5.0: EC002716; ETIM 6.0: EC002716; ETIM 7.0: EC002716; UNSPSC 16.0901: 39121528; Connection/Pin assignment: Connection type: Cable open end, 2,000 mm; Connection type DetailCable materialPVCConductor cross-section0.2 mm²: Connection type Detail; Pin assignment senderBNL1BUN: Pin assignment sender; Pin assignment receiverBNL1BUNBKQ: Pin assignment receiver
