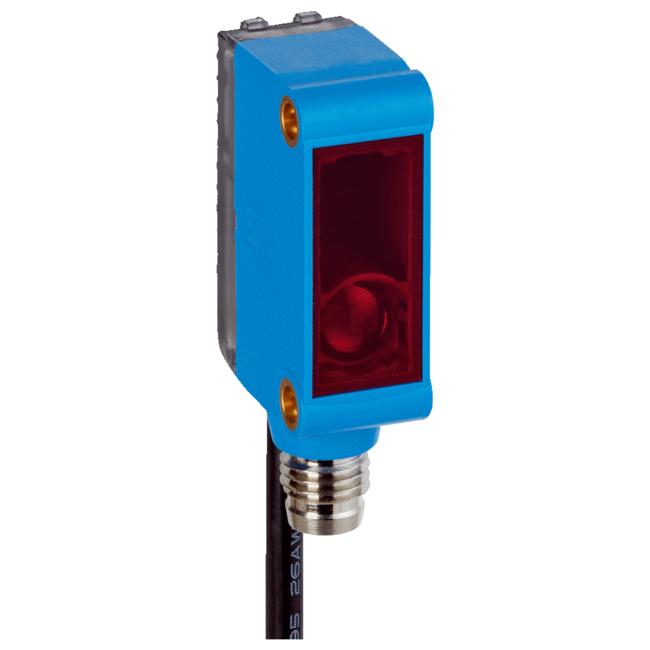

SICK GL6-CC011K00

GL6-CC011K00 SICK ⍾ 1098785 ⍾ GL6CC011K00

Features: Device version: FlexChain Guest; Sensor principle: Photoelectric retro-reflective sensorLight grid system; Mechanics/electronics: Light source: PinPoint LED, visible red light; Light spot size (distance): Ø 8 mm (350 mm); Wave length: 650 nm; Supply voltage Vs: 12 V, via FlexChain (host); Adjustment: Cable (Sensitivity)Via FlexChain (host); Dimensions (W x H x D): 12 mm x 31.5 mm x 21 mm; Connection type: Male connector M8, 4-pin, Cable with receptacle M8, 4-pin, 0.15 m; Housing material: Plastic (ABS); Enclosure rating: IP65, IP67; Protection class: III; Weight: Approx. 23 g; Performance: Operating range: 6 m; Ambient data: EMC: EN 61000-6-2, EN 61000-6-3; Ambient operating temperature: –25 °C +55 °C; Ambient storage temperature: –25 °C +70 °C; Vibration resistance: Sinusoidal oscillation 20-2,000 Hz 10 g, 3 h per axle; Shock load: Single shocks 30 g, 11 ms 6 per axleContinuous shocks 25 g, 6 ms, 1,000 per axis; Classifications: ECl@ss 5.0: 27270910; ECl@ss 5.1.4: 27270910; ECl@ss 6.0: 27270910; ECl@ss 6.2: 27270910; ECl@ss 7.0: 27270910; ECl@ss 8.0: 27270910; ECl@ss 8.1: 27270910; ECl@ss 9.0: 27270910; ECl@ss 10.0: 27270910; ECl@ss 11.0: 27270910; ETIM 5.0: EC002549; ETIM 6.0: EC002549; ETIM 7.0: EC002549; UNSPSC 16.0901: 39121528
