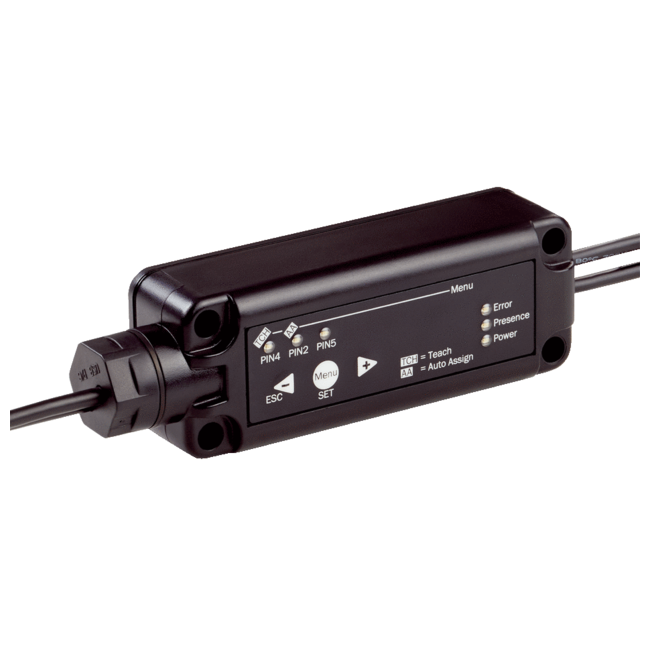

SICK FC1A-AZ2A1A

FC1A-AZ2A1A SICK ⍾ 1091608 ⍾ FC1AAZ2A1A

Features: Device version: FlexChain Host; Sensor principle: Sender/receiverPhotoelectric retro-reflective sensorPhotoelectric proximity sensorLight grid system; Configuration: USB connection for easy configuration of the FlexChain with SOPAS ET, the engineering tool from SICK; Configuration: Sensor parameterizationZone definitionMeasurement functionsLogic functionInterface parameterizationDiagnostics functions; Included with delivery: 1 × FlexChain Host1 × Quick Start Guide2 x FlexChain terminators (4092950); Mechanics/electronics: Supply voltage Vs: 24 V 1) 2); Output current Imax.: 100 mA; Output load capacitive: 100 µF; Output load inductive: 1 H; Initialization time: < 1 s; Dimensions (W x H x D): 109.4 mm x 25 mm x 35 mm; Connection type: Cable with plug M12, 5-pin 3); Housing material: Plastic (ABS); Synchronization: Cable; Enclosure rating: IP65, IP67; Circuit protection: UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression; Protection class: III; Weight: Approx. 154 g; Performance: Response time: ≤ 35 ms 1); Communication interface: IO-Link✔ , IO-Link V1.1Data transmission rate230,4 kbit/s (COM3)Cycle time≥ 2.3 s: IO-Link; Process data length: 32 Byte; Digital outputQ1, Q2, Q3Number3: Digital output; Digital inputIn1, In2Number2: Digital input; Ambient data: EMC: EN 61000-6-2, EN 61000-6-3; Ambient operating temperature: –25 °C +50 °C; Ambient storage temperature: –25 °C +70 °C; Vibration resistance: Sinusoidal oscillation 20-2,000 Hz 10 g, 3 h per axle; Shock load: Single shocks 30 g, 11 ms 6 per axleContinuous shocks 25 g, 6 ms, 1,000 per axis; Classifications: ECl@ss 5.0: 27270910; ECl@ss 5.1.4: 27270910; ECl@ss 6.0: 27270910; ECl@ss 6.2: 27270910; ECl@ss 7.0: 27270910; ECl@ss 8.0: 27270910; ECl@ss 8.1: 27270910; ECl@ss 9.0: 27270910; ECl@ss 10.0: 27270910; ECl@ss 11.0: 27270910; ETIM 5.0: EC002549; ETIM 6.0: EC002549; ETIM 7.0: EC002549; UNSPSC 16.0901: 39121528
