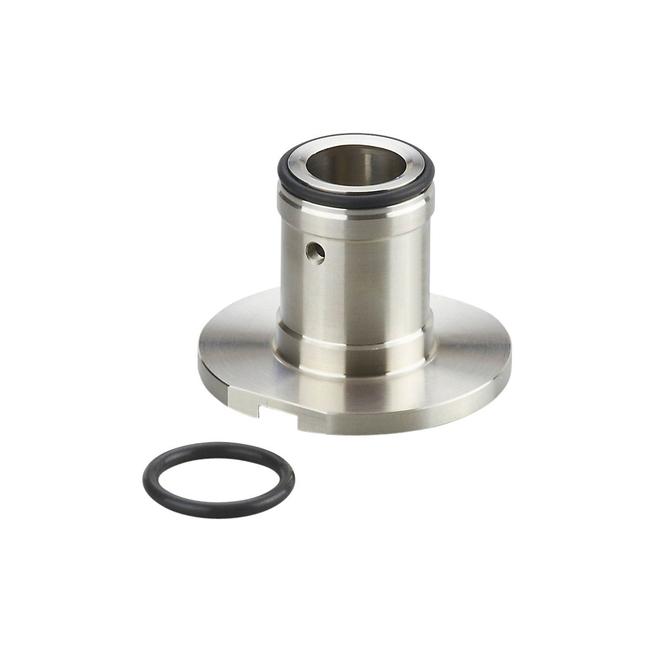

E33405 ifm ⍾ ADAPT G1/2 - 3A/DN38
Mounting adapter for process sensors; Materials : stainless steel (1.4404 / 316L); Sensor connection : G 1/2 sealing cone; Process connection : Clamp DN38 (1,5"); Surface characteristics Ra/Rz of the wetted parts : < 0.8 / 8; Sealing : metal to PEEK; Hygienic equipment class to DIN 11866 : H3; Items supplied : O-ring: 1, EPDM
- Connection
- Cable: 0.4 m, PUR, Halogen-free, black, Ø 5.5 mm; 5 x 0.50 mm²
- Current consumption
- < 47 mA
- Display
- colour display 1,44", 128 x 128 pixels | 2 x LED, yellow
- Degree of protection
- IP 65
- Weight
- 142.5 g
- Dimensions
- 21 x 42 x 34.44 mm
