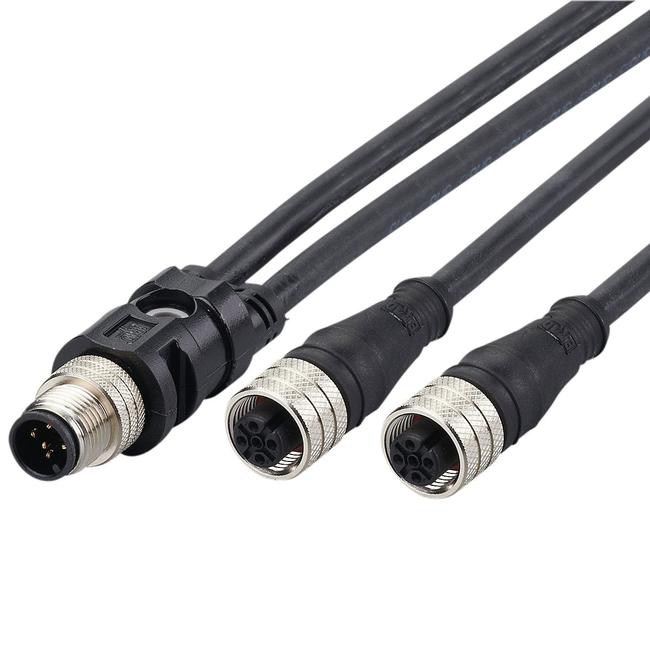

E12405 ifm ⍾ YDOGH050MSS0,25H04STGH050MSS

Y connection cable; Max. current load total [A] : 4; Ambient temperature [°C] : -25...90; Materials : TPU; Moulded-body material : TPU; Material nut : brass, nickel-plated; Number of ports splitter box : 2; Cable: 0.25 m, PUR, Halogen-free, black, Ø 5 mm; 5 x 0.25 mm² (32 x Ø 0.1 mm ); Connector: 2 x M12, straight; Moulded body: TPU; Locking: brass, nickel-plated

Connection

Connector: 1 x M12, straight; Moulded body: TPU; Locking: brass, nickel-plated

No. of inputs/outputs

Number of analogue inputs: 2; Number of digital outputs: 4; Number of analogue outputs: 1

Current consumption

100 mA

Voltage supply

20...30; (via flat cable) V

Display

switching status: 2 x LED, yellow

Degree of protection

IP 67

Weight

65 g

Dimensions

15 x 15 x 43 mm
