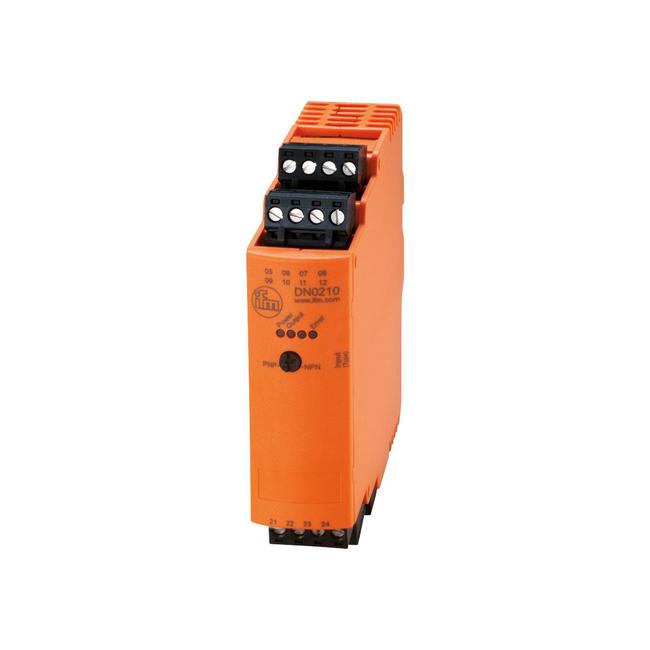

DN0210 ifm ⍾ N200/SA-1 110-240VAC
Switching amplifier; Nominal voltage AC [V] : 110...240; Nominal voltage tolerance [%] : > 20; Nominal voltage tolerance 2 [%] : 20...10; Nominal frequency AC [Hz] : 50...60; Insulation rating [V] : 9; Max. power consumption AC [W] : 11; Auxiliary energy for sensors DC [V] : 24; (SELV, ± 10 %, 300 mA); Number of channels : 1; Number of relay outputs : 1; Contact rating : 4 A (240 V AC, 24 V DC); (ohmic resistance); Ambient temperature [°C] : -20...60; Storage temperature [°C] : -25...70; Max. relative air humidity [%] : 80; (40 °C: 50 % non condensing); Max. height above sea level [m] : 3000; Protection rating terminals : IP 20; Degree of soiling : 2; (≤ 240 V AC); Housing : housing for DIN rail mounting; Type of mounting : rail; (TH35 EN 60715); Materials : plastics: PC-GF20; Items supplied : connector: 3 x 4-pole, with screw connection
- Connection
- pin headers: 4 x ; Spacing: 5.0 mm
- No. of inputs/outputs
- Number of relay outputs: 1
- Current consumption
- < 15 mA
- Voltage supply
- 20...30; (via flat cable) V
- Display
- voltage supply: 1 x LED, green | Output: 1 x LED, yellow | errors: 1 x LED, red
- Degree of protection
- IP 20
- Weight
- 214 g
- Dimensions
- 78 x 45 x 124.7 mm
