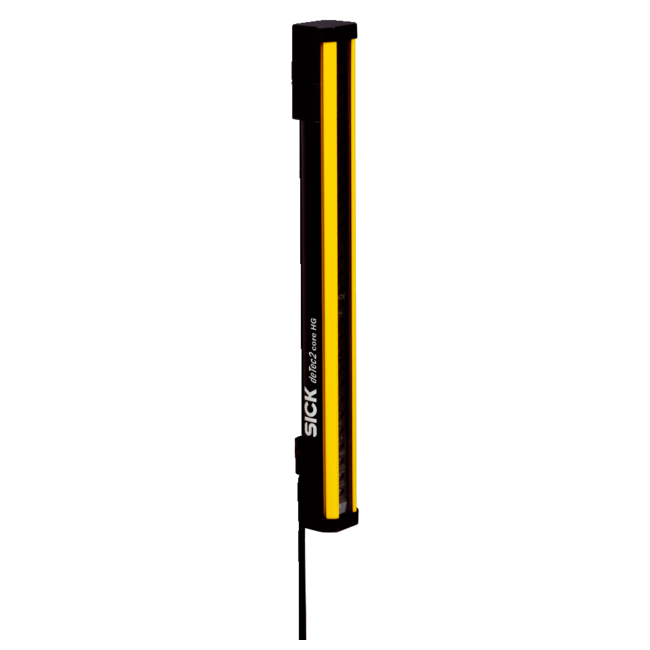

C2C-EG19510A10000 SICK1221099C2CEG19510A10000

Features: Application: Areas where coolants, lubricants and cleaning agents are used; System part: Receiver; Compatible sender: 1221098; Resolution: 14 mm; Scanning range: 10 m; Protective field height: 1,950 mm; Response time: 21 ms; No blind zones: Yes; Synchronization: Optical synchronisation; Items supplied: ReceiverTest rod with diameter corresponding to the resolution of the safety light curtainSafety instructionMounting instructionsOperating instructions for download; Safety-related parameters: Type: Type 2 (IEC 61496-1); Safety integrity level: SIL1 (IEC 61508)SILCL1 (IEC 62061); Category: Category 2 (ISO 13849-1); Performance level: PL c (ISO 13849-1); PFHD (mean probability of a dangerous failure per hour): 31 x 10-9; TM (mission time): 20 years (ISO 13849-1); Safe state in the event of a fault: At least one OSSD is in the OFF state.; Functions: Protective operation: ✔; Automatic calibration of the protective field width: ✔; Interfaces: System connection: Male connector M12, 5-pin; Display elements: LEDs; Fieldbus, industrial networkIntegration via Flexi Soft safety controllerCANopen 1)DeviceNet™EtherCAT®EtherNet/IP™Modbus TCPPROFIBUS DPPROFINET: Fieldbus, industrial network; Electrical data: Protection class: III (IEC 61140); Supply voltage VS: 24 V DC (19.2 V ... 28.8 V); Ripple: ≤ 10 %; Power consumption typical: 4.56 W (DC); Output signal switching devices (OSSDs)Type of output2 PNP semiconductors, short-circuit protected, cross-circuit monitored 1)ON state, switching voltage HIGH24 V DC (VS – 2.25 V DC ... VS)OFF state, switching voltage LOW≤ 2 V DCCurrent-carrying capacity per OSSD≤ 300 mA: Output signal switching devices (OSSDs); Mechanical data: Dimensions: See dimensional drawing; Housing material: Aluminum extruded profile; Front screen material: Chemically prestressed float glass; Bending radiusStationary position> 12 x cable diameterFlexible use> 15 x cable diameter: Bending radius; Ambient data: Enclosure rating: IP65 (IEC 60529)IP67 (IEC 60529); Ambient operating temperature: –30 °C ... +55 °C; Storage temperature: –30 °C ... +70 °C; Air humidity: 15 % ... 95 %, Non-condensing; Vibration resistance: IEC 60068-2-6; Shock resistance: 10 g, 16 ms (IEC 60068-2-27); Classifications: ECl@ss 5.0: 27272704; ECl@ss 5.1.4: 27272704; ECl@ss 6.0: 27272704; ECl@ss 6.2: 27272704; ECl@ss 7.0: 27272704; ECl@ss 8.0: 27272704; ECl@ss 8.1: 27272704; ECl@ss 9.0: 27272704; ECl@ss 10.0: 27272704; ECl@ss 11.0: 27272704; ETIM 5.0: EC002549; ETIM 6.0: EC002549; ETIM 7.0: EC002549; UNSPSC 16.0901: 46171620
