BANNER SMA30SELQDB

SMA30SELQDB BANNER ⍾ 27373

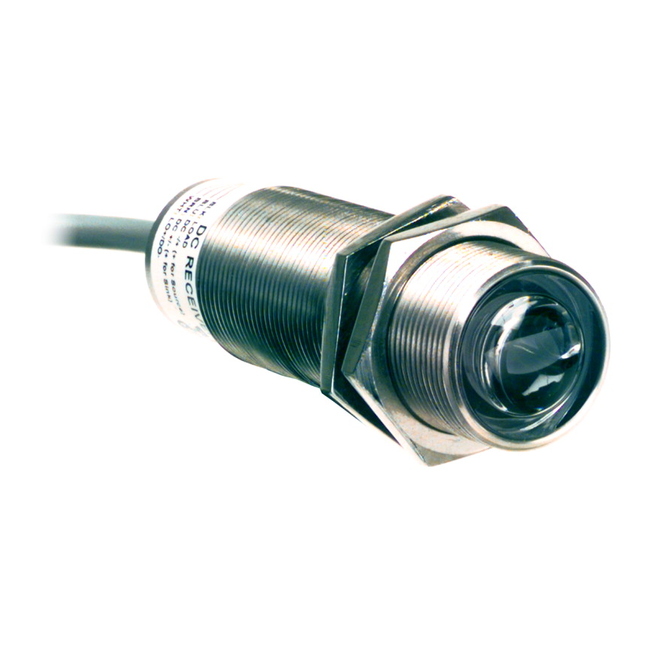

SM30 Series 150 m Range Opposed Mode Barrel Sensor; SM30 Series: Emitter - Frequency B Stainless Stl Range: 150 m; Input: 10-30 V dc / 12 to 240Vac Output: Not applicable - No outputs Mini 3-pin Integral QD; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Emitter; Housing Style : Barrel; Primary Housing Material : Stainless Steel; Max Sensing Distance (mm) : 150000; Quick Disconnect Type : 7/8 in. (Mini); Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Number of Pins : 3; NEMA Rating : NEMA 6P; Max Op. Relative Humidity [%] : 90% @ 50°C; Barrel Diameter (mm) : 30; Opposed Mode Emitter/Receiver : Emitter; Feature: Encapsulated : Yes; Feature: Chemical Resistant : Yes; Feature: Quick Disconnect : Yes

Lens material
Acrylic
Sensing beam
Infrared LED
Connection
Integral QD
Power supply type
AC/DC Universal
Power supply
10-30 V dc or 12-240 V ac
Indicator
LEDs
Degree of protection
IP67
