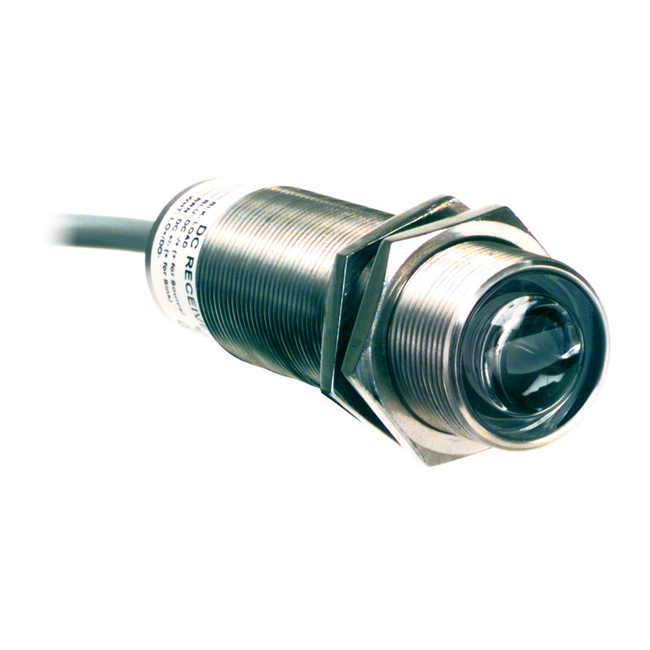

BANNER SM30PRL

SM30PRL BANNER ⍾ 27291

SM30 Series 150 m Range Opposed Mode Barrel Sensor; SM30 Series: Receiver - Frequency A PBT Polyester Range: 150 m; Input: 10-30V dc Output: Bi-Modal: 1 NPN; 1 PNP - LO & DO2 m (6.5 ft) cable; Cable Length (m) : 2; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Receiver; Housing Style : Barrel; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 150000; Outputs : Bipolar (NPN & PNP); Quick Disconnect Type : No QD; Min Op. Temp. (°C) : -40; Operation : Light/Dark Operate; Max Op. Temp. (°C) : 70; Output response time (ms) : 10; Repeatability (µs) : 1000; Number of Pins : 4; NEMA Rating : NEMA 6P; Max Op. Relative Humidity [%] : 90% @ 50°C; Barrel Diameter (mm) : 30; Opposed Mode Emitter/Receiver : Receiver; Feature: Encapsulated : Yes

Lens material
Acrylic
Sensing beam
Infrared LED
Connection
Cable
Power supply type
DC
Power supply
10-30 V dc
Indicator
LEDs
Degree of protection
IP67
