BANNER SM2A30PRLQDB

SM2A30PRLQDB BANNER ⍾ 27385

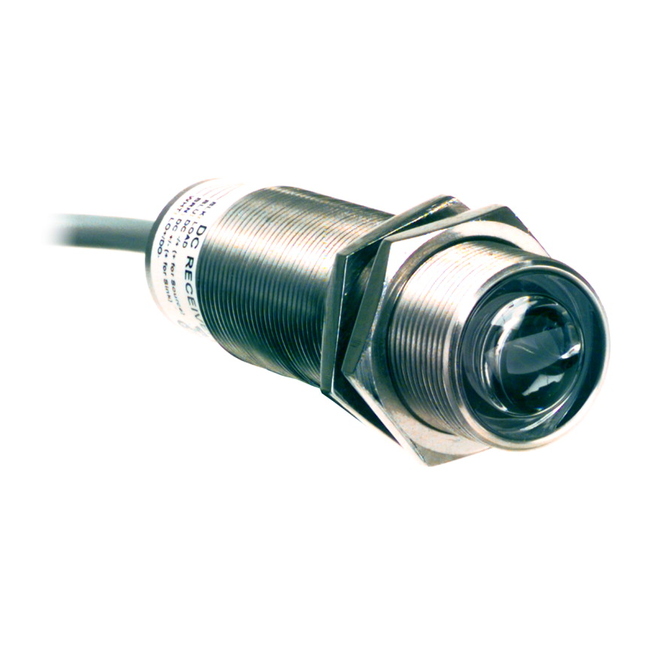

SM30 Series 150 m Range Opposed Mode Barrel Sensor; SM30 Series: Receiver - Frequency B PBT Polyester Range: 150 m; Input: 24 to 240 V ac Output: SPST Solid-state - Light Operate Mini 3-pin Integral QD; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Receiver; Housing Style : Barrel; Primary Housing Material : Thermoplastic; Input/Output : Solid-State AC Switch; Max Sensing Distance (mm) : 150000; Outputs : Solid-State AC Switch; Quick Disconnect Type : 7/8 in. (Mini); Operation : Light Operate; Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Output response time (ms) : 10; Repeatability (µs) : 1500; Number of Pins : 3; NEMA Rating : NEMA 6P; Max Op. Relative Humidity [%] : 90% @ 50°C; Barrel Diameter (mm) : 30; Opposed Mode Emitter/Receiver : Receiver; Feature: Encapsulated : Yes; Feature: Quick Disconnect : Yes

Lens material
Acrylic
Sensing beam
Infrared LED
Connection
Integral QD
Power supply type
AC
Power supply
24-240 V ac
Indicator
LEDs
Degree of protection
IP67
