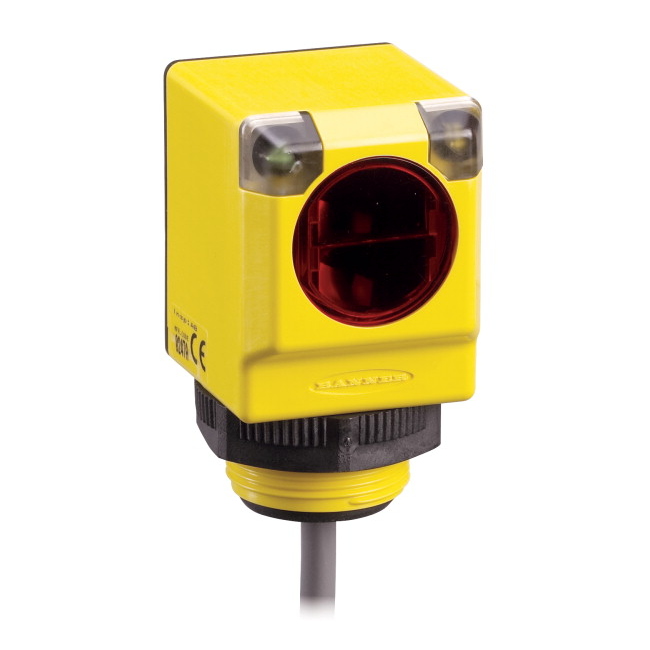

Q40SP6FF600Q BANNER ⍾ 34343

Q40 Series 60 m Range Harsh Environment Sensor; EZ-BEAM Q40 Series: Fixed Field Range: 600 mm; Input: 10-30 V dc Output: Complementary PNPEuro M12 4-pin Integral QD; Sensing Mode (General) : Proximity; Sensing Mode (Detailed) : Background Suppression (Fixed); Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Input/Output : Discrete; Max Sensing Distance (mm) : 600; Outputs : PNP; Quick Disconnect Type : M12 (Euro); Operation : Light/Dark Operate; Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Output response time (ms) : 3; Repeatability (µs) : 750; Number of Pins : 4; NEMA Rating : NEMA 6P; Max Op. Relative Humidity [%] : 90% @ 50°C; Barrel Diameter (mm) : 30; Feature: Washdown Rated : Yes; Feature: Ecolab Certified : Yes; Feature: Encapsulated : Yes; Feature: Quick Disconnect : Yes; Feature: Health/ Marginal Signal Output : Yes

Lens material: Polycarbonate
Sensing beam: Infrared LED
Connection: Integral QD
Typical response time: 100 ms
Power supply type: DC
Power supply: 10-30 V dc
Indicator: LEDs
Degree of protection: IP67, IP69
