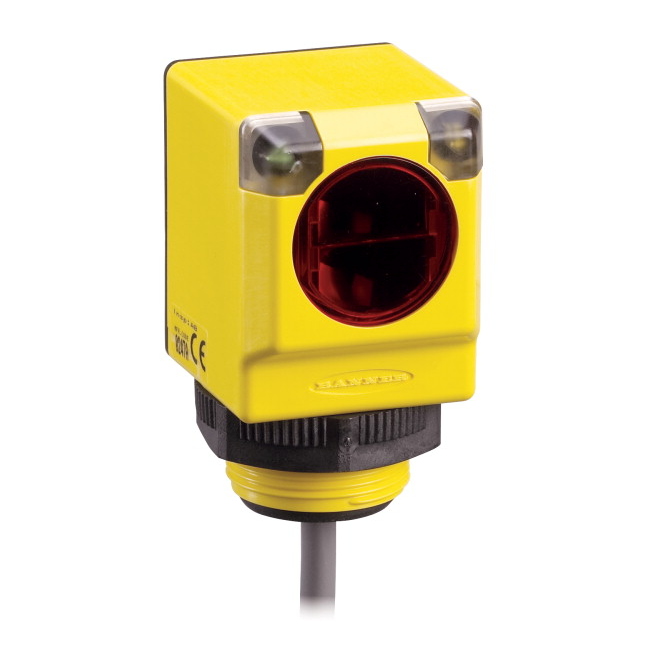

Q40AW3RQ21 BANNER ⍾ 34424
This product has been marked as discontinued. Please ask for availability or replacement.
Q40 Series 60 m Range Harsh Environment Sensor; EZ-BEAM Q40 Series: Right-Angle Receiver Opposed Range: 60 m; Input: 20-250 V ac Output: Light Operate Mini 5-pin Integral QD; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Receiver; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Input/Output : Solid-State AC Switch; Max Sensing Distance (mm) : 60000; Outputs : Solid-State AC Switch; Quick Disconnect Type : 7/8 in. (Mini); Operation : Light Operate; Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Output response time (ms) : 16 ON/8 OFF; Repeatability (µs) : 2000; Number of Pins : 5; NEMA Rating : NEMA 6P; Max Op. Relative Humidity [%] : 90% @ 50°C; Barrel Diameter (mm) : 30; Opposed Mode Emitter/Receiver : Receiver; Feature: Washdown Rated : Yes; Feature: Ecolab Certified : Yes; Feature: Encapsulated : Yes; Feature: Quick Disconnect : Yes
- Lens material
- Polycarbonate
- Sensing beam
- Infrared LED
- Connection
- Integral QD
- Typical response time
- 100 ms
- Power supply type
- AC
- Power supply
- 20-250 V ac
- Indicator
- LEDs
- Degree of protection
- IP69
