Q403EQ20 BANNER ⍾ 34418

This product has been marked as discontinued. Please ask for availability or replacement.

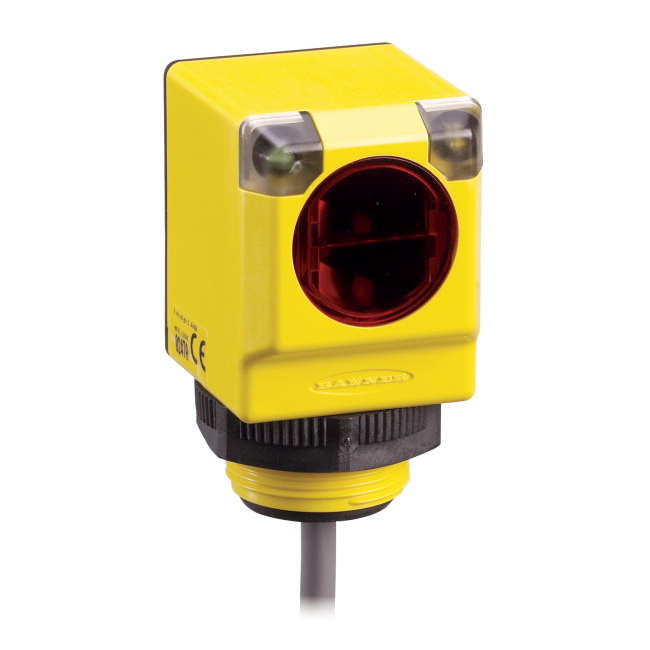

Q40 Series 60 m Range Harsh Environment Sensor; EZ-BEAM Q40 Series: Right-Angle Emitter Range: 60 m; Input: 20-250 V ac Output: Not Applicable Mini 3-pin Integral QD; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Emitter; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Max Sensing Distance (mm) : 60000; Quick Disconnect Type : 7/8 in. (Mini); Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Repeatability (µs) : 2000; Number of Pins : 3; NEMA Rating : NEMA 6P; Max Op. Relative Humidity [%] : 90% @ 50°C; Barrel Diameter (mm) : 30; Opposed Mode Emitter/Receiver : Emitter; Feature: Washdown Rated : Yes; Feature: Ecolab Certified : Yes; Feature: Encapsulated : Yes; Feature: Quick Disconnect : Yes

Lens material: Polycarbonate
Sensing beam: Infrared LED
Connection: Integral QD
Typical response time: 100 ms
Power supply type: AC
Power supply: 20-250 V ac
Indicator: LEDs
Degree of protection: IP69
