Q403E W/30 BANNER ⍾ 33914

This product has been marked as discontinued. Please ask for availability or replacement.

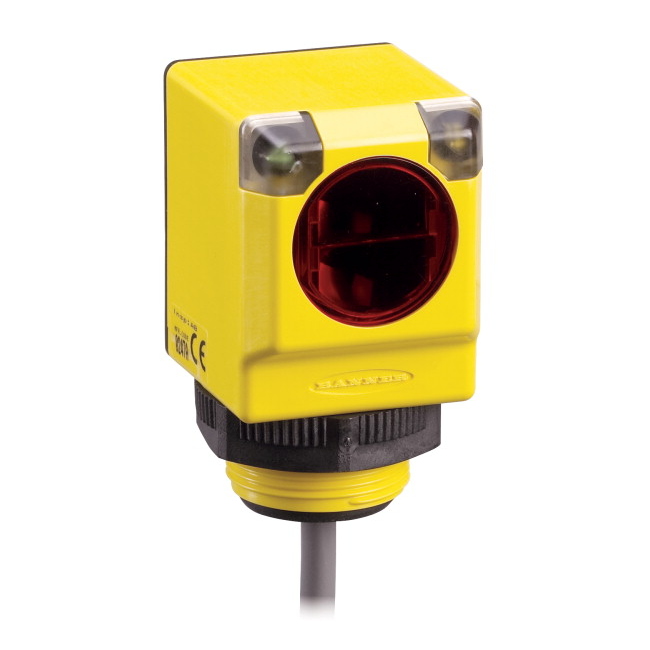

Q40 Series 60 m Range Harsh Environment Sensor; EZ-BEAM Q40 Series: Emitter Range: 60 m; Input: 20-250 V ac Output: Not applicable - No outputs 9 m (30 ft) Cable; Cable Length (m) : 9; Sensing Mode (General) : Opposed; Sensing Mode (Detailed) : Emitter; Housing Style : Rectangular; Primary Housing Material : Thermoplastic; Max Sensing Distance (mm) : 60000; Quick Disconnect Type : No QD; Min Op. Temp. (°C) : -40; Max Op. Temp. (°C) : 70; Repeatability (µs) : 2000; Number of Pins : 2; NEMA Rating : NEMA 6P; Max Op. Relative Humidity [%] : 90% @ 50°C; Barrel Diameter (mm) : 30; Opposed Mode Emitter/Receiver : Emitter; Feature: Ecolab Certified : Yes; Feature: Encapsulated : Yes

Lens material: Polycarbonate
Sensing beam: Infrared LED
Connection: Cable
Typical response time: 100 ms
Power supply type: AC
Power supply: 20-250 V ac
Indicator: LEDs
Degree of protection: IP67
