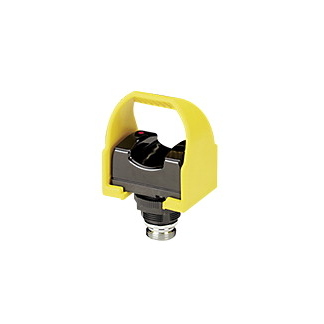

OTBVR81 W/Y BANNER ⍾ 35086
Optical Touch Buttons: LTB Series; OTB Series: Momentary Action Touch Button w/Yellow F.C.Input: 20-30V ac or dc; Upper Housing: Polysulfone Output: E/M Relay (SPDT)2m (6.5ft) Cable; Non-Illuminated : Yes; Power Source : DC or AC; Sensing Mode (General) : Single Point Optical; Housing Style : Base Mount - Saddle; Primary Housing Material : Thermoplastic Polysulfone; Actuation : Yes; Activation Function : Optical; Mounting Thread : M30 x 1.5; Product Size (mm) : Other; Number of Input Pins/Conductors : 5; Operation : Normally Open/Normally Closed; Supply Voltage : 20-30 V dc/ac; Output Type : SPDT e/m Relay; Input Type : AC; Max Input Response Time (ms) : 100; Max Output Response Time (ms) : 100; Number of Beams : 1; Environmental Rating : IP66; NEMA Type and UL Type Rating : NEMA 1, 3, 4, 4X, 12, 13; Max Op. Relative Humidity Non-Condensing (%) : 90% @ 50°C; Max Op. Temperature (°C) : 50; Min Op. Temperature (°C) : -20; Field Cover Color : Yellow; Primary Housing Color : Black; Button Operation : Momentary; Secondary Material : Thermoplastic
- Connection
- Cable
- Power supply type
- DC or AC
- Dimensions
- 59.9 x 43.2 x 48.0 mm
