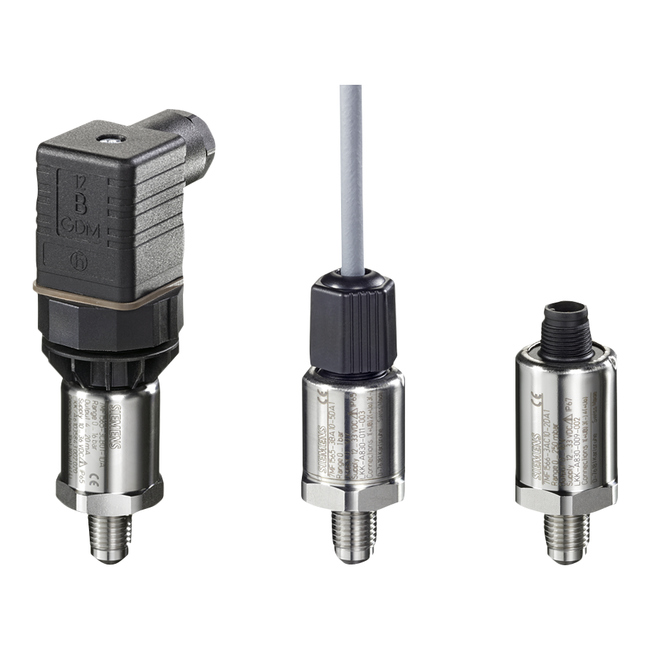

7MF1565-5BG00-3CA1 SIEMENS ⍾ 7MF15655BG003CA1
SITRANS P200 Transmitters for pressure and absolute pressure for general applications Non-linearity: 0,25 percent (typically) wetted parts material:ceramics, stainless steel plus sealing material; non-wetted parts material: stainless steel Measuring range for absolute: 0 to 6 bar abs., Overload- pressure 15 bar abs. Output signal: 4 to 20 mA two-wire connection, power supply DC 7 to 33 V without explosion protection Electrical connection: Connecti via mounted cable, 2m (not with explosion protection) Process connection: G1/4" male thread to EN837-1 (1/4"-BSP male) Sealing material between sensor and housing: Viton (FPM, Standard) Standard version
![]() |
SIEMENS 7MF1565-5BG00-3CA1 Datasheet PDF (en) Size: 151 KB |
Download |
