7ME6140-2RM10-1HA1 SIEMENS ⍾ 7ME61402RM101HA1

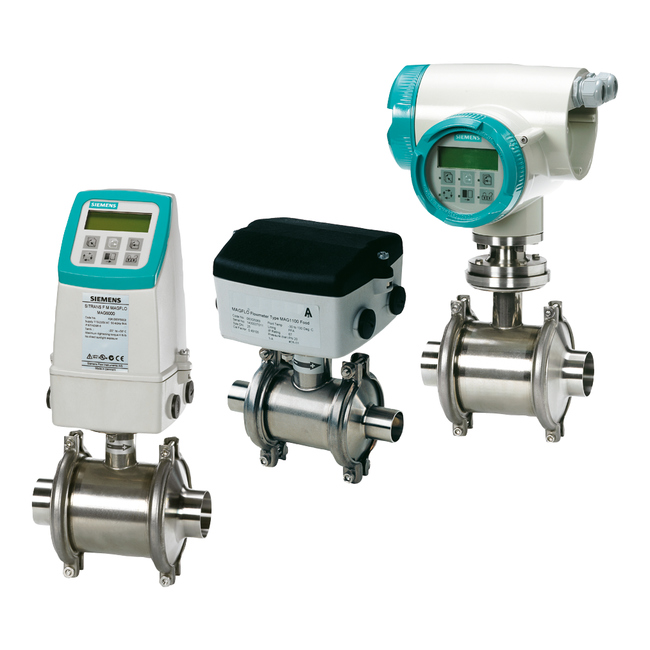

SITRANS FM MAG 1100 F Full-bore electromagnetic flow sensor, sanitary design, diameter DN 10 to DN 100 (3/8" to 4"). Suitable for volume flow measurement of liquids (conductive) , for applications in F&B, pharmaceutical industry. . DN40, 1 1/2 Inch Threaded type connection fittings: DIN 11851 PFA (no ATEX) EPDM (FDA) Hastelloy C22 / 2.4602 MAG 6000, IP67 / NEMA 4X/6 Plastic enclosure, with display 11-30V DC/11-24V AC, 50/60 Hz No bus Communication Metric cable glands, Polyamid terminal box or MAG 6000i integral mount
 |
SIEMENS 7ME6140-2RM10-1HA1 Datasheet PDF (en) Size: 115 KB |
Download |
Related in 7me6140 / SITRANS F M (electromagnetic) ⍾ Page 1
-
7ME6140-1DA10-1AA1
SITRANS F M MAGFLO MAG 1100 Food (description not available) Electrode material: Hastelloy C-276 Sensor for remote transmitter (order transmitter separately)- 3A approved No bus Co …
-
7ME6140-1RA10-1AA1
SITRANS F M MAGFLO MAG 1100 Food (description not available) DN10, 3/8 Inch None (not 3A approved) PFA (no ATEX) EPDM (FDA) Electrode material: Hastelloy C-276 Sensor for remote tr …
-
7ME6140-1RB20-2KA1
SITRANS FM MAG 1100 F Full-bore electromagnetic flow sensor, sanitary design, diameter DN 10 to DN 100 (3/8" to 4"). Suitable for volume flow measurement of liquids (conductive) , …
-
7ME6140-1RM10-1JA2
SITRANS F M MAGFLO MAG 1100 Food (description not available) DN10, 3/8 Inch Threaded type connection fittings: DIN 11851 PFA (no ATEX) EPDM (FDA) Electrode material: Hastelloy C-27 …
-
7ME6140-1RM22-2CA2
SITRANS F M MAGFLO MAG 1100 Food (description not available) DN10, 3/8 Inch Threaded type connection fittings: DIN 11851 Ceramic FPM/FKM (FDA) Electrode material: Platinum MAG 6000 …
-
7ME6140-1VA10-1AA1
SITRANS F M MAGFLO MAG 1100 Food (description not available) DN15, 1/2 Inch None (not 3A approved) PFA (no ATEX) EPDM (FDA) Electrode material: Hastelloy C-276 Sensor for remote tr …
-
7ME6140-1VA20-2AA1
SITRANS F M MAGFLO MAG 1100 Food . DN15, 1/2 Inch None (not 3A approved) Ceramic EPDM (FDA) Electrode material: Platinum Sensor for remote transmitter (order transmitter separately …
-
7ME6140-1VA22-2AA1
SITRANS F M MAGFLO MAG 1100 Food (description not available) DN15, 1/2 Inch None (not 3A approved) Ceramic FPM/FKM (FDA) Electrode material: Platinum Sensor for remote transmitter …
-
7ME6140-1VB10-1LA1
SITRANS FM MAG 1100 F Full-bore electromagnetic flow sensor, sanitary design, diameter DN 10 to DN 100 (3/8" to 4"). Suitable for volume flow measurement of liquids (conductive) , …
-
7ME6140-1VG20-2AA2
SITRANS FM MAG 1100 F Full-bore electromagnetic flow sensor, sanitary design, diameter DN 10 to DN 100 (3/8" to 4"). Suitable for volume flow measurement of liquids (conductive) , …
-
7ME6140-1VG22-2HA2
SITRANS F M MAGFLO MAG 1100 Food (description not available) DN15, 1/2 Inch Clamp type: DIN 32676 Ceramic FPM/FKM (FDA) Platinum (only with ceramic liner) MAG 6000, IP67 / NEMA 4X/ …
-
7ME6140-2DA10-1AA1
SITRANS FM MAG 1100 F Full-bore electromagnetic flow sensor, sanitary design, diameter DN 10 to DN 100 (3/8" to 4"). Suitable for volume flow measurement of liquids (conductive) , …
