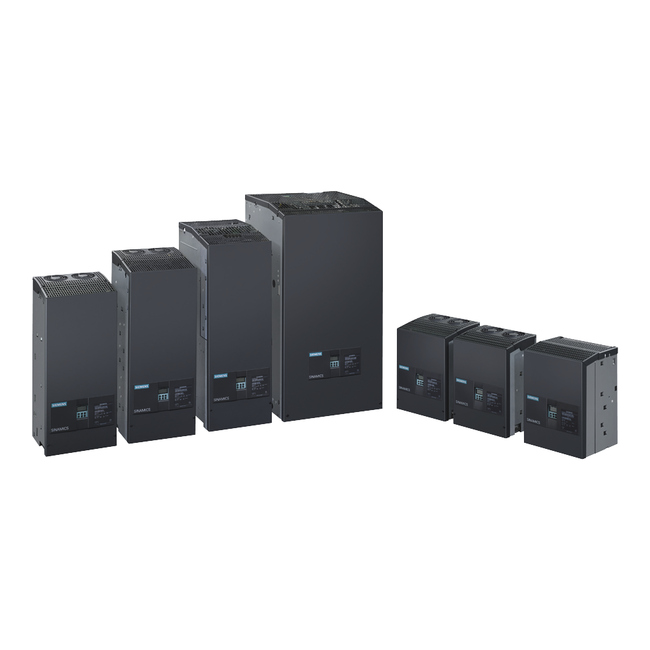

6RA8096-4GS22-0AA0 SIEMENS ⍾ 6RA80964GS220AA0
SINAMICS DCM DC CONVERTER FOR TWO-QUADRANT DRIVES CONNECTION B6C INPUT: 3-PHASE AC 575V, 1826A CONTROLLABLE FIELD RECTIFIER D690/2200 MRE-GEEF4S22 OUTPUT: DC 690V, 2200A
Related in 6ra8096 / SINAMICS DCM ⍾ Page 1
-
-
-
-
6RA8096-4MV62-0AA0-Z G00
+G10 +G20 +S02 SINAMICS DCM DC converter for 4-quadrant drives Circuit (B6) A (B6) C Input: 950 V 3 AC, 1826 A controllable: Field rectifier D1000/2200 MREQ-GEGF4V62 Output: 1000 V DC, 2200 A G00 …
-
6RA8096-4MV62-0AA0-Z G00
+G11 +G20 +L10 +M08 +S01 SINAMICS DCM DC converter for 4-quadrant drives Circuit (B6) A (B6) C Input: 950 V 3 AC, 1826 A controllable: Field rectifier D1000/2200 MREQ-GEGF4V62 Output: 1000 V DC, 2200 A G00 …
-
6RA8096-4MS22-0AA0-Z G00
+G11 +L10 +L15 +M08 +S01 +S02 SINAMICS DCM DC converter for two-quadrant drives B6C connection Input: 950 V 3 AC, 1826 A controllable: Field rectifier D1140/2200 MRE-GEEF4S22 Output: 1140 V DC, 2200 A G00=Advan …
-
6RA8096-4MV62-0AA0-Z G00
+G11 +L10 +L15 +M08 +S01 +S02 SINAMICS DCM DC converter for 4-quadrant drives Circuit (B6) A (B6) C Input: 950 V 3 AC, 1826 A controllable: Field rectifier D1000/2200 MREQ-GEGF4V62 Output: 1000 V DC, 2200 A G00 …
