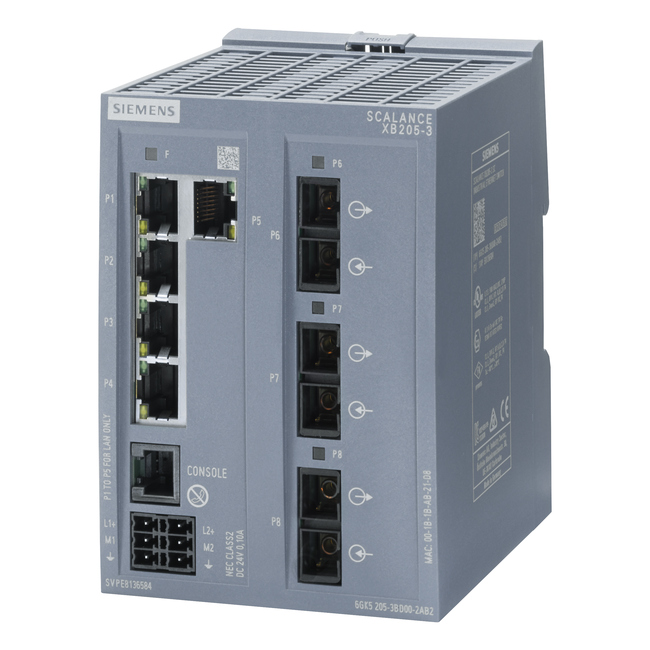

6GK5205-3BD00-2AB2 SIEMENS ⍾ 6GK52053BD002AB2
SCALANCE XB205-3 managed Layer 2 IE switch 5x 10/100 Mbit/s RJ45 ports 3x MM FO SC-port 1x console port, diagnostics LED redundant power supply; IEC 62443-4-2 certified; temperature range 0 °C to +60 °C; DIN-rail mounting; default PROFINET.
- Customs tariff number
- 85176200
- Expected origin
- DE
- Weight
- 0.429 kg
 |
SIEMENS 6GK5205-3BD00-2AB2 Datasheet PDF (en) Size: 151 KB |
Download |
