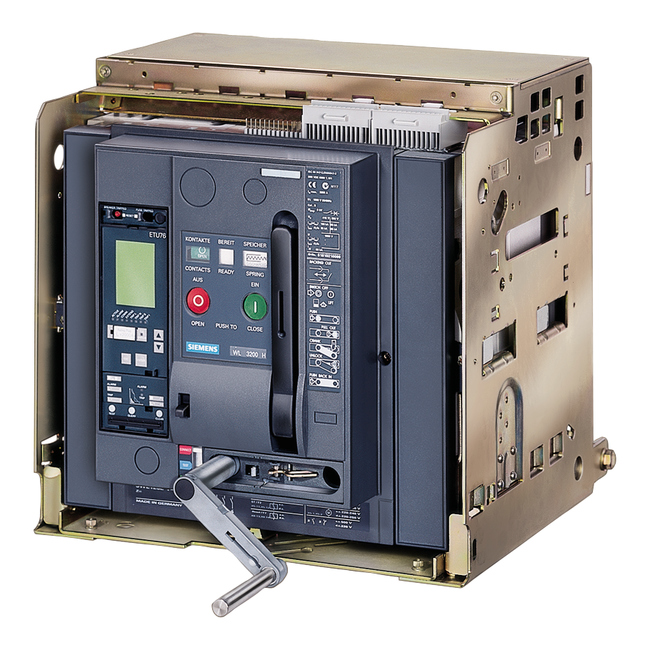

3WL1225-2AA35-1GA2 SIEMENS ⍾ 3WL12252AA351GA2
Withdraw. non-aut. circuit-b. without guide frame 3-pole, size II, IEC In=2500A to 690V, AC50/60Hz Icu=66kA at 500V rear connection horizontal without overcurrent release With manual operating mechanism with storage with mechanical request With 1st auxiliary release Shunt release "F", F1 50/60 Hz 230 V AC/220 V DC, 100% on-load factor without 2nd auxiliary release 2NO+2NC
 |
SIEMENS 3WL1225-2AA35-1GA2 Datasheet PDF (en) Size: 746 KB |
Download |
