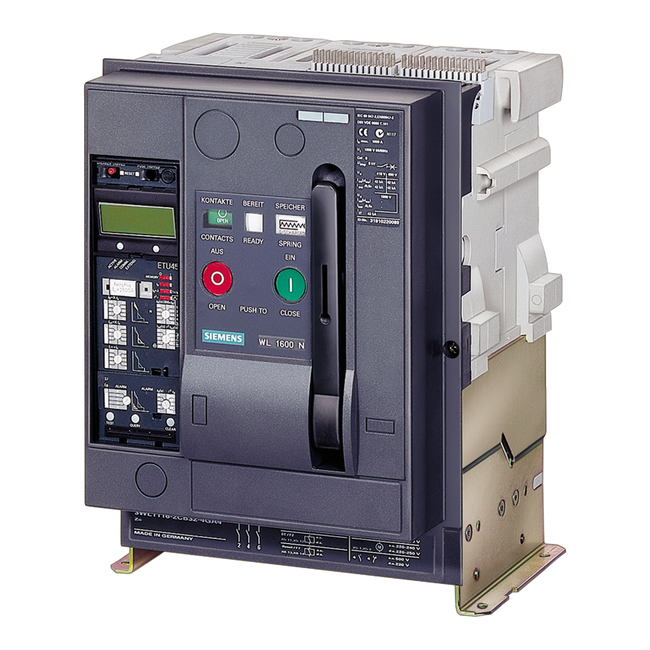

3WL1116-4EB45-1AA2-Z C22 SIEMENS ⍾ 3WL11164EB451AA2ZC22
Withdrawable circuit breaker without guide frame 4-pole, size I, IEC In=1600A to 690V, AC50/60Hz Icu=85kA at 500V rear connection horizontal Overcurrent release ETU 45 LSIN protection adjustable 0.4-1 in with cubicle bus Opt.: Comm. /measuring func./ground fault/ ZSS With manual operating mechanism with storage with mechanical request without 1st auxiliary release without 2nd auxiliary release 2NO+2NC C22= Ready-to-close signaling
 |
SIEMENS 3WL1116-4EB45-1AA2-Z C22 Datasheet PDF (en) Size: 913 KB |
Download |
