1PH8184-1DD40-2AA1-Z G14+L76
SIEMENS ⍾ 1PH81841DD402AA1ZG14L76

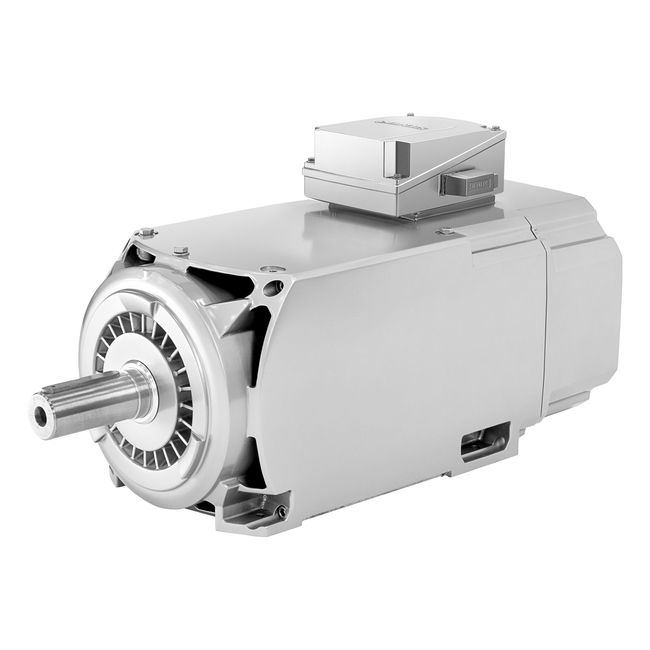

SIMOTICS M Compact induction motor 1000rpm, 57kW 544Nm, 120 A, 340V 1150rpm, 65kW 540Nm, 120 A, 390V 1350rpm, 74kW 523Nm, 118A, 450 V Open-circuit ventilation Direction of air flow NDE-->DE Degree of protection IP23 Incremental encoder 22-bit with commutation position (encoder IC22DQ) with DRIVE-CLiQ interface DESIGN IM B3 (IMB6, IMB7, IMB8, IMV6) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: STANDARD VIBRATION SEVERITY GRADE A; SHAFT A.FLANGE ACCURACY GR.N TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END G14: FAN ASSEMBLY WITH AIR FILTER L76: EC fan 400 V 3 AC 50/60 Hz
- Customs tariff number
- 85015290
- Expected origin
- CZ
- Weight
- 358.000 kg
 |
SIEMENS 1PH8184-1DD40-2AA1-Z G14+L76 Datasheet PDF (en) Size: 102 KB |
Download |
